ERDI LDR25K1 1064nm Laser Target Designator with 25mJ Output for Precision Target Marking
ERDI LDR25K1 1064nm Laser Target Designator with 25mJ Output for Precision Target Marking
Couldn't load pickup availability

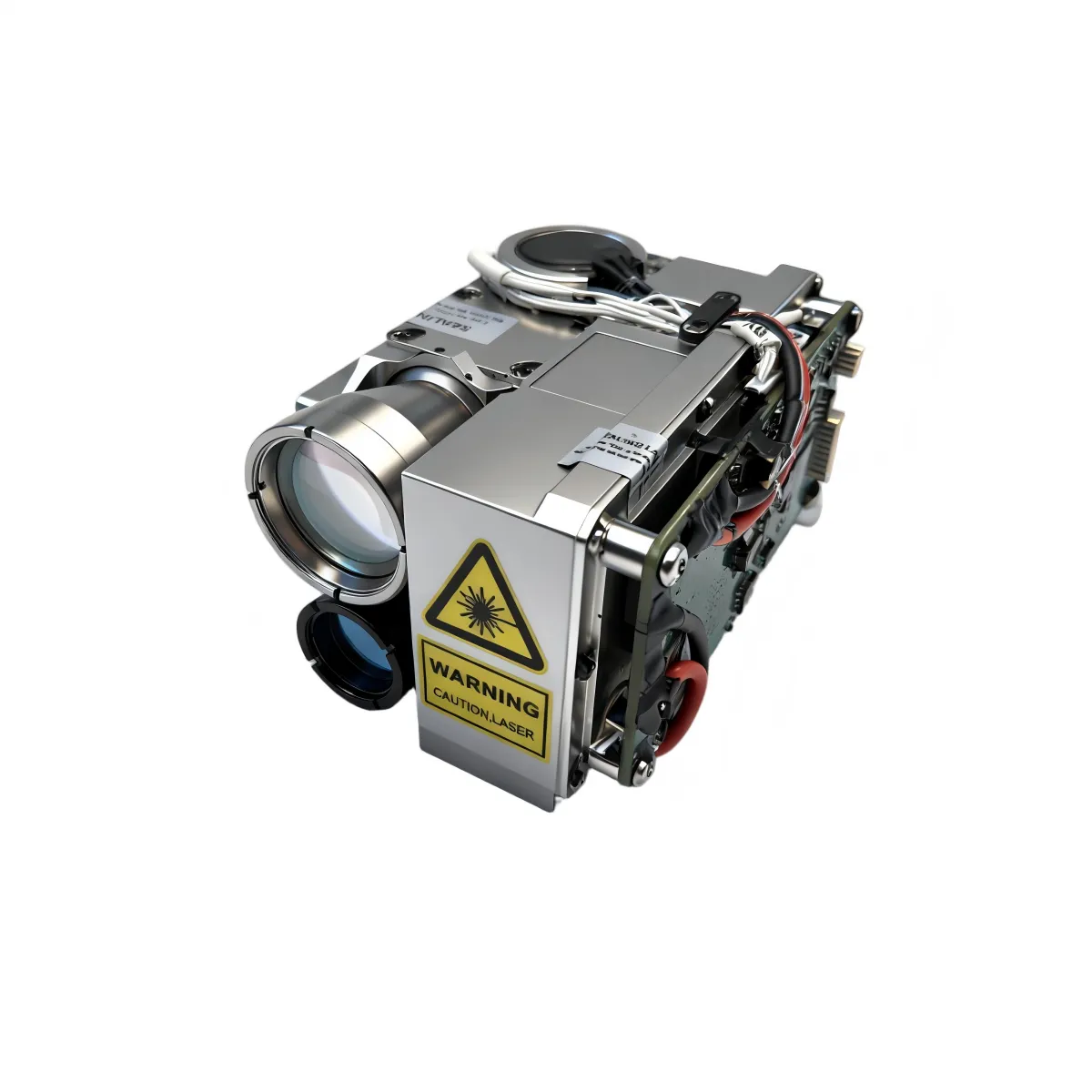

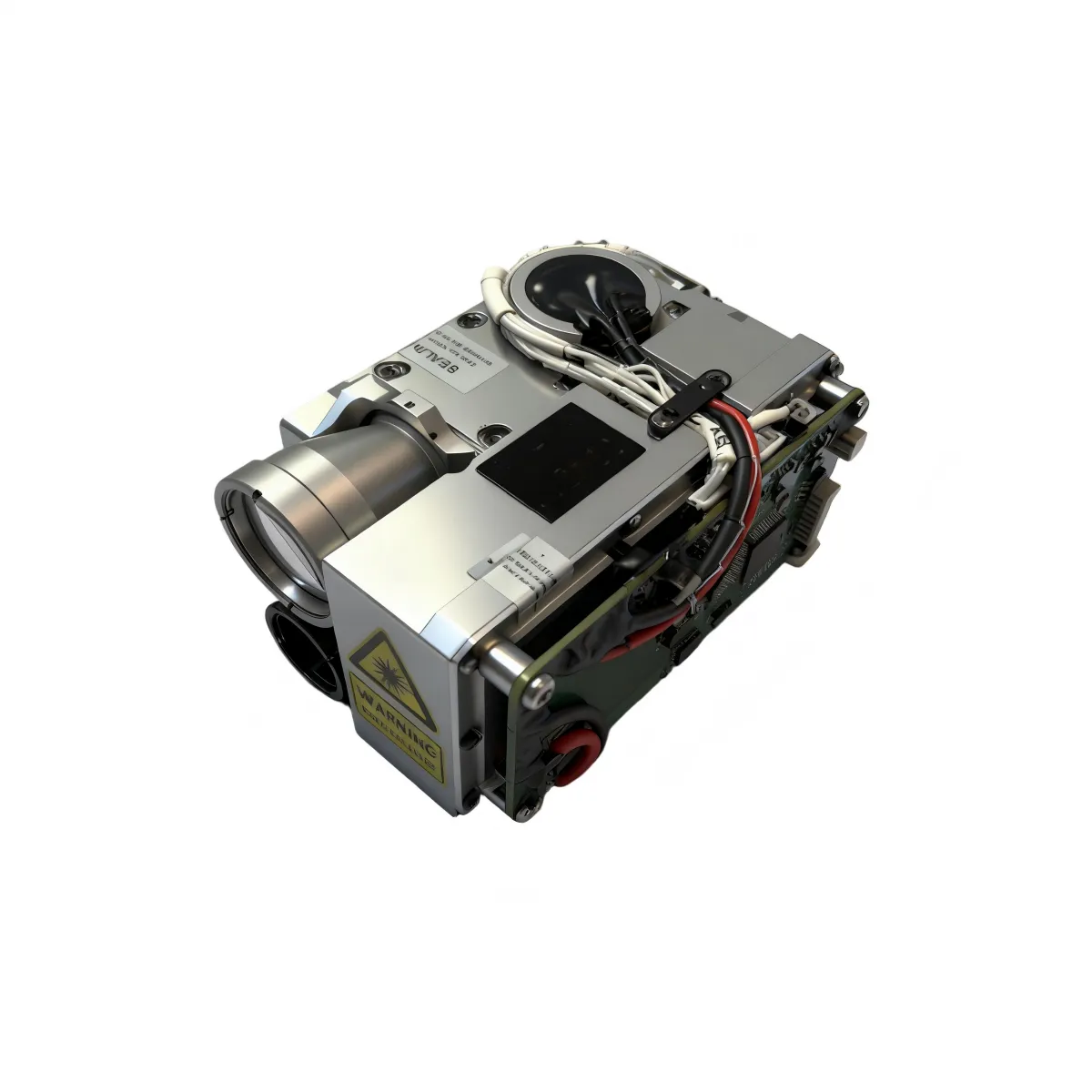

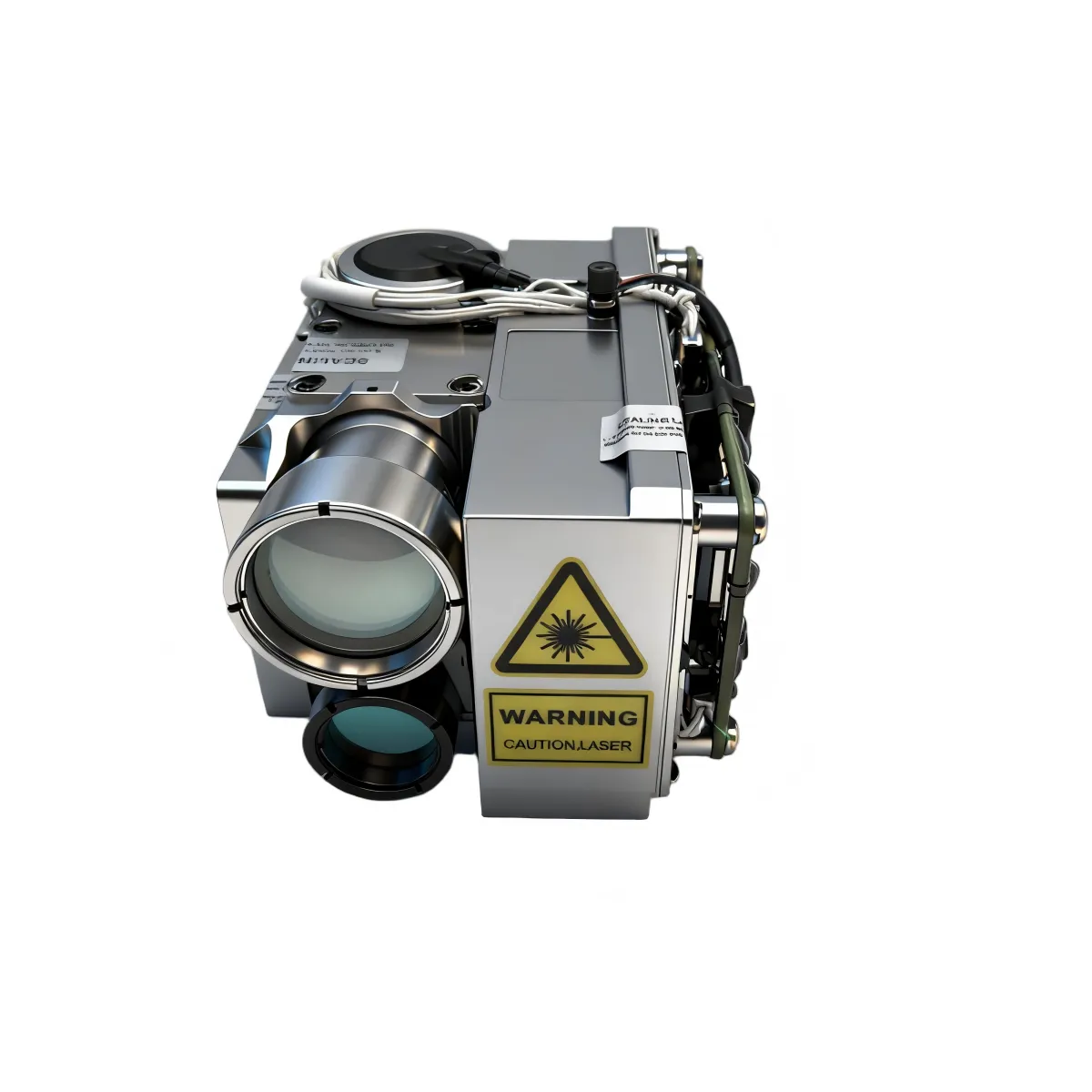

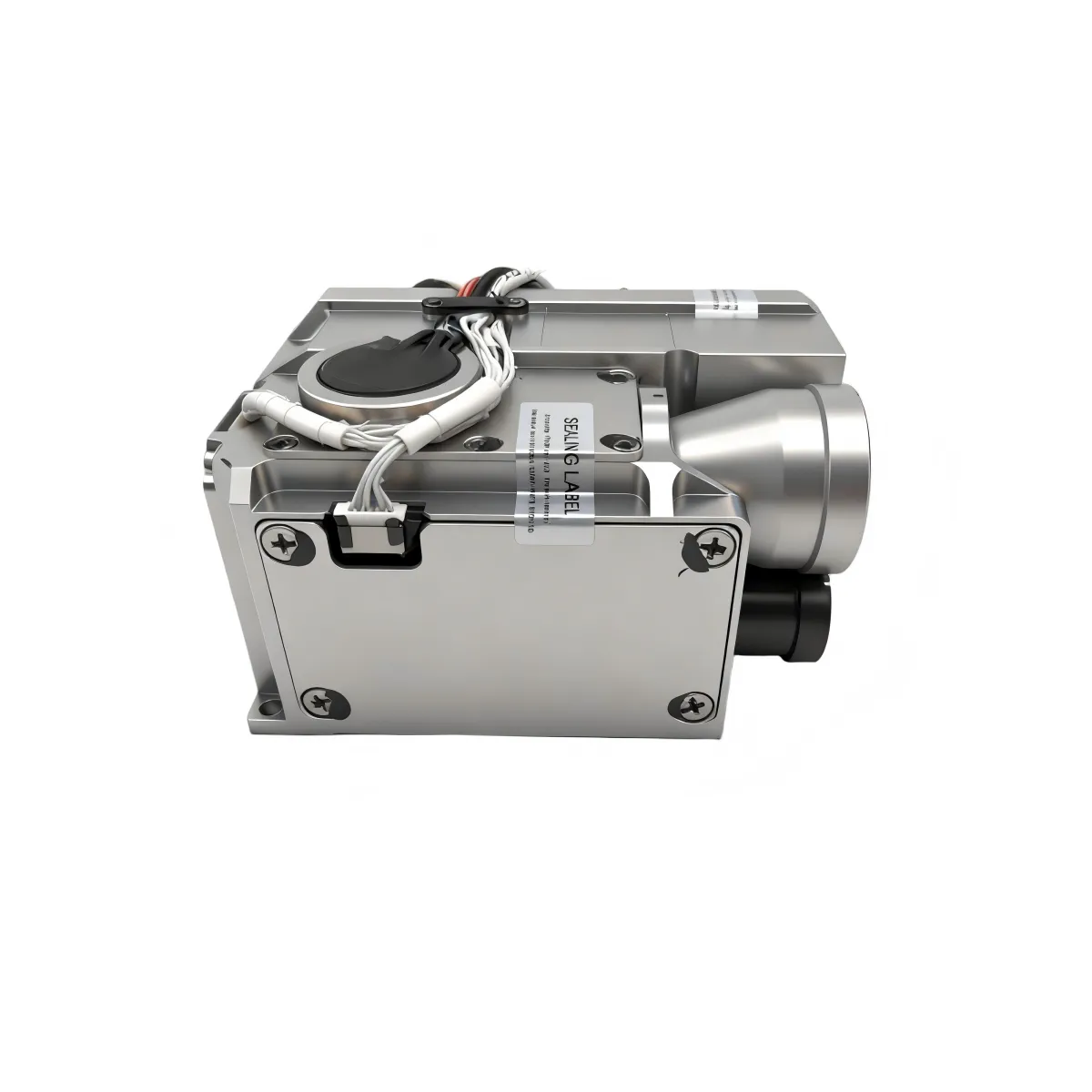

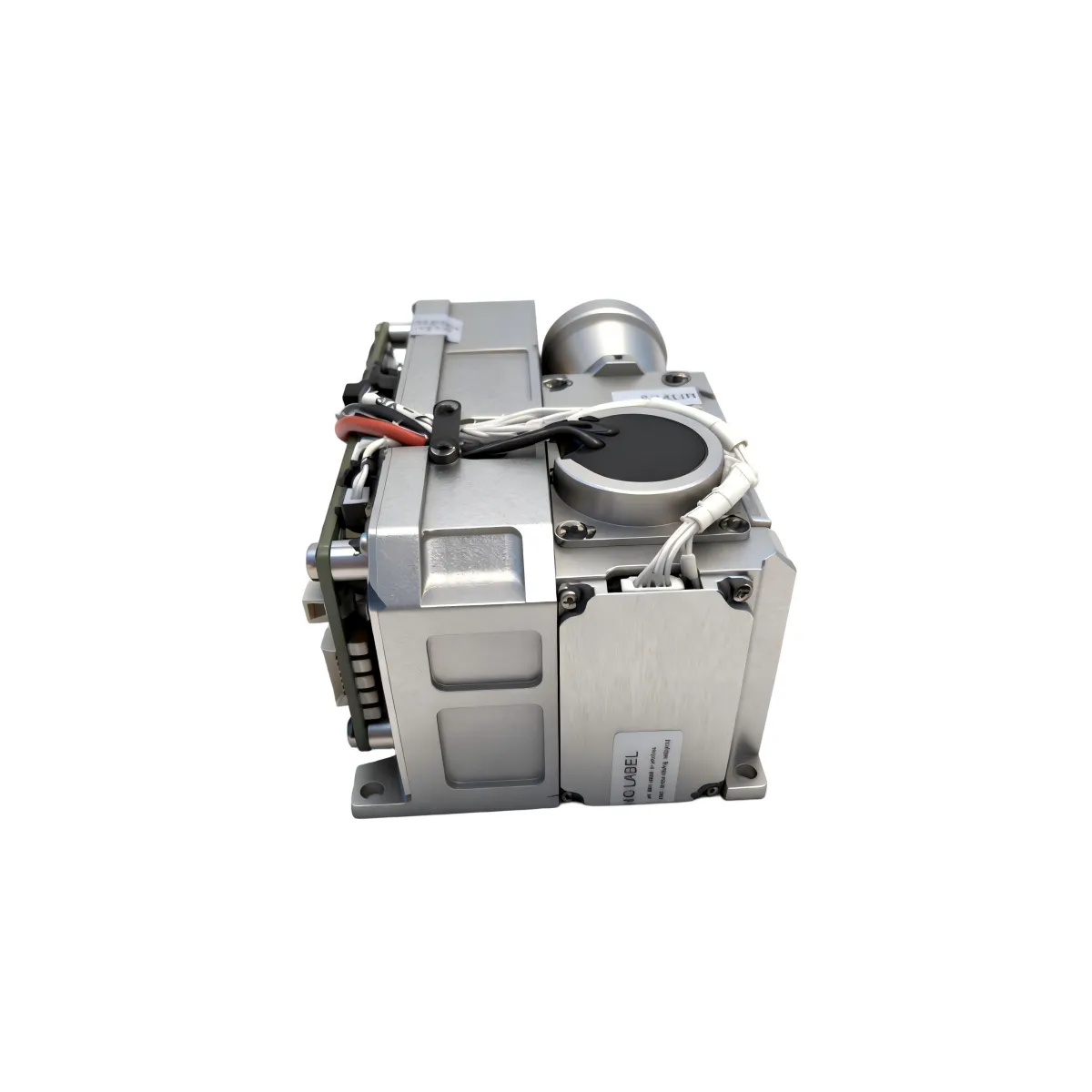

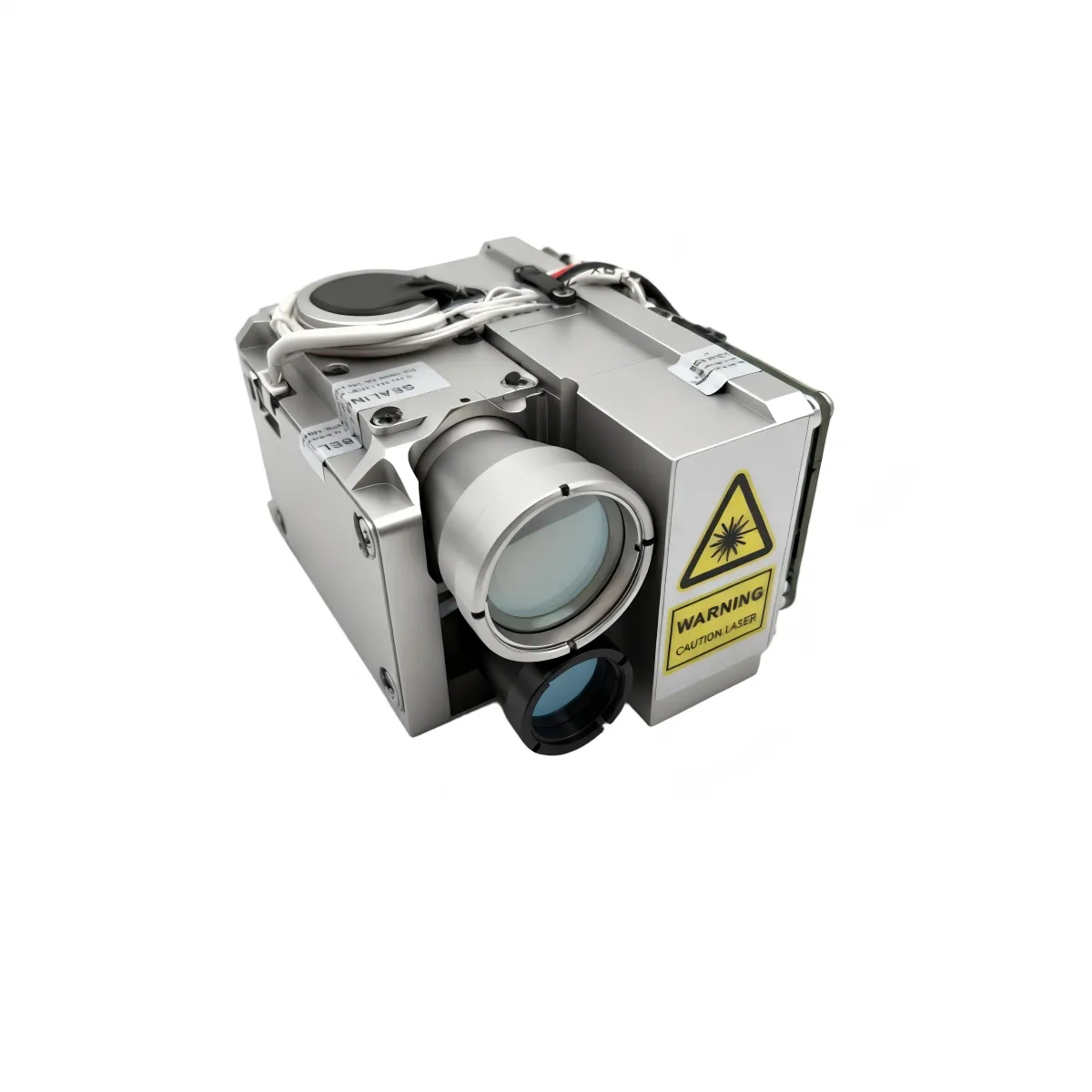

The LDR25K1 is a compact 1064 nm solid-state laser rangefinder and target designator with 25 mJ pulse energy, configurable beam divergence and frequency-coded illumination. It delivers precise ranging beyond 5 km with ±2 m accuracy and ≥ 98% hit rate, plus ≥ 2 km designation range at 20 Hz coding frequency. With RS-422 digital control, a sub-400 g mechanical envelope, 20–28 V supply and full MIL-style environmental hardening, it is ideal for UAV gimbals, vehicle turrets, airborne pods and other high-end electro-optical systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Wavelength | 1.064 ± 0.003 μm |
| Pulse Energy | ≥ 25 mJ |
| Measurement Range (Ranging) | 120 m to ≥ 5,200 m (Vehicle-sized target) |
| Measurement Range (Designation) | ≥ 2 km |
| Ranging Accuracy | ±2 m |
| Ranging Frequency | 1 Hz / 5 Hz / Single-shot |
| Designation Frequency | 20 Hz (Coded) |
| Beam Divergence | ≤ 0.6 mrad |
| Hit Rate | ≥ 98% |
| Communication Interface | RS-422 / TTL |
| Supply Voltage | 20–28 V |
| Power Consumption | ≤ 50 W (Avg) |
| Operating Temperature | -40°C to +60°C |
| Dimensions | 68 mm × 52 mm × 90 mm |
| Weight | ≤ 380 g |
Control Functions
- Respond to ranging commands; stop upon stop command;
- Output one set of range data and status per pulse during ranging;
- Range gate function for ranging;
- Auto‑stop continuous ranging after 5 min (1 Hz) or 1 min (5 Hz) if no stop command is received;
- Configure designation mode and code;
- Respond to designation command per configured mode/code; stop upon stop command;
- Auto‑stop after one designation cycle if no stop command is received;
- Output distance and status per pulse during designation;
- Power‑on and periodic self‑test with status output;
- Respond to self‑test command with status output;
- Report cumulative number of emitted laser pulses.
- OUTLINE DIMENSION
- ≤ 68 mm × 52 mm × 90 mm
- PIN INTERFACE
-
Communication interface: one TTL-level serial port.
Connector model and interface definition: see Table 1.Socket: MOLEX 53048-0810
Mating Plug: MOLEX 51021-0800Table 1 — Electrical Interface Definition (TTL)
Pin No.
Signal Name
Description
1
24V
Power supply +
2
24V
Power supply +
3
24V GND
Power return (–)
4
24V GND
Power return (–)
5
—
—
6
TTL_RX
Host → laser rangefinder/designator module
7
TTL_TX
Laser rangefinder/designator module → host
8
TTL_GND
Serial port ground
