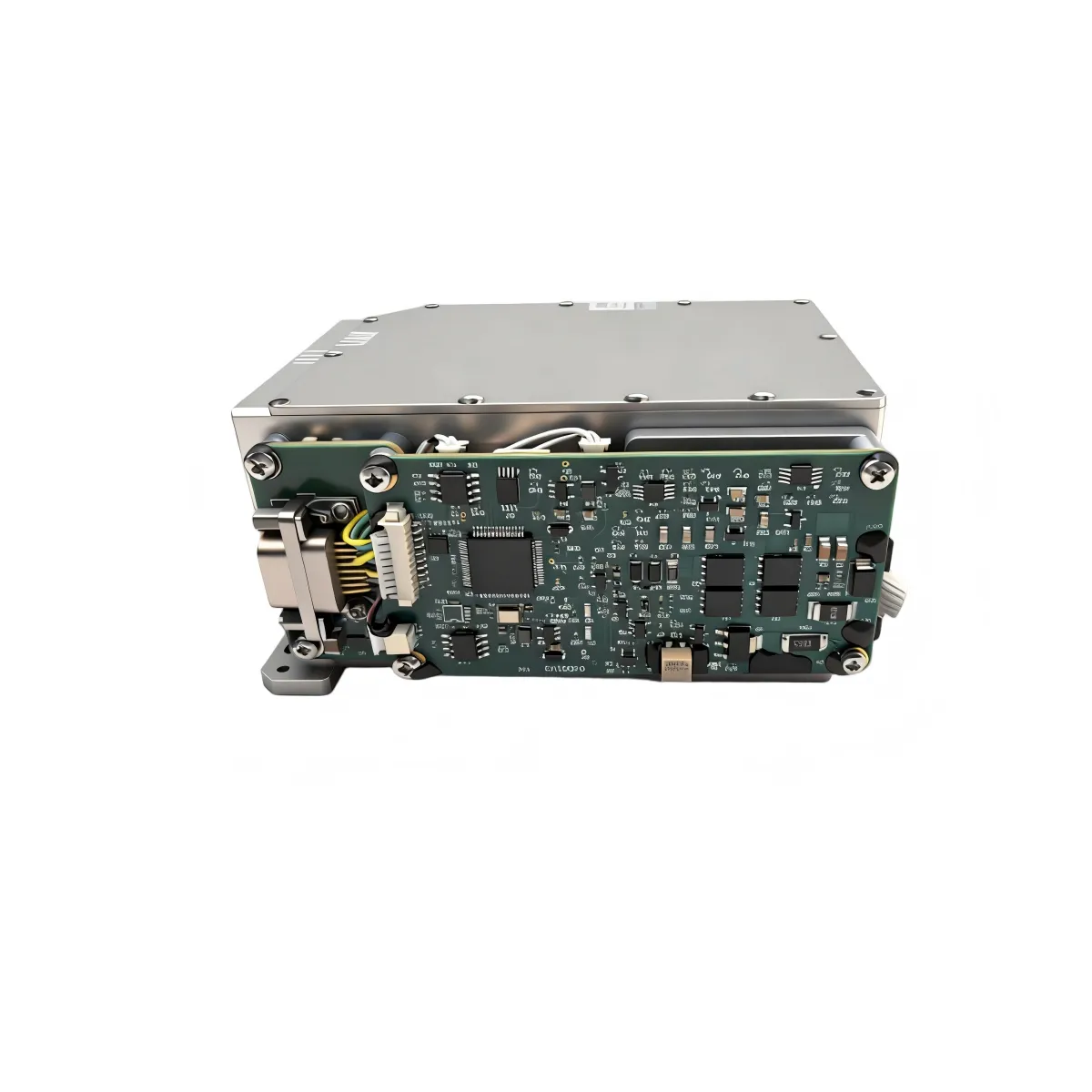

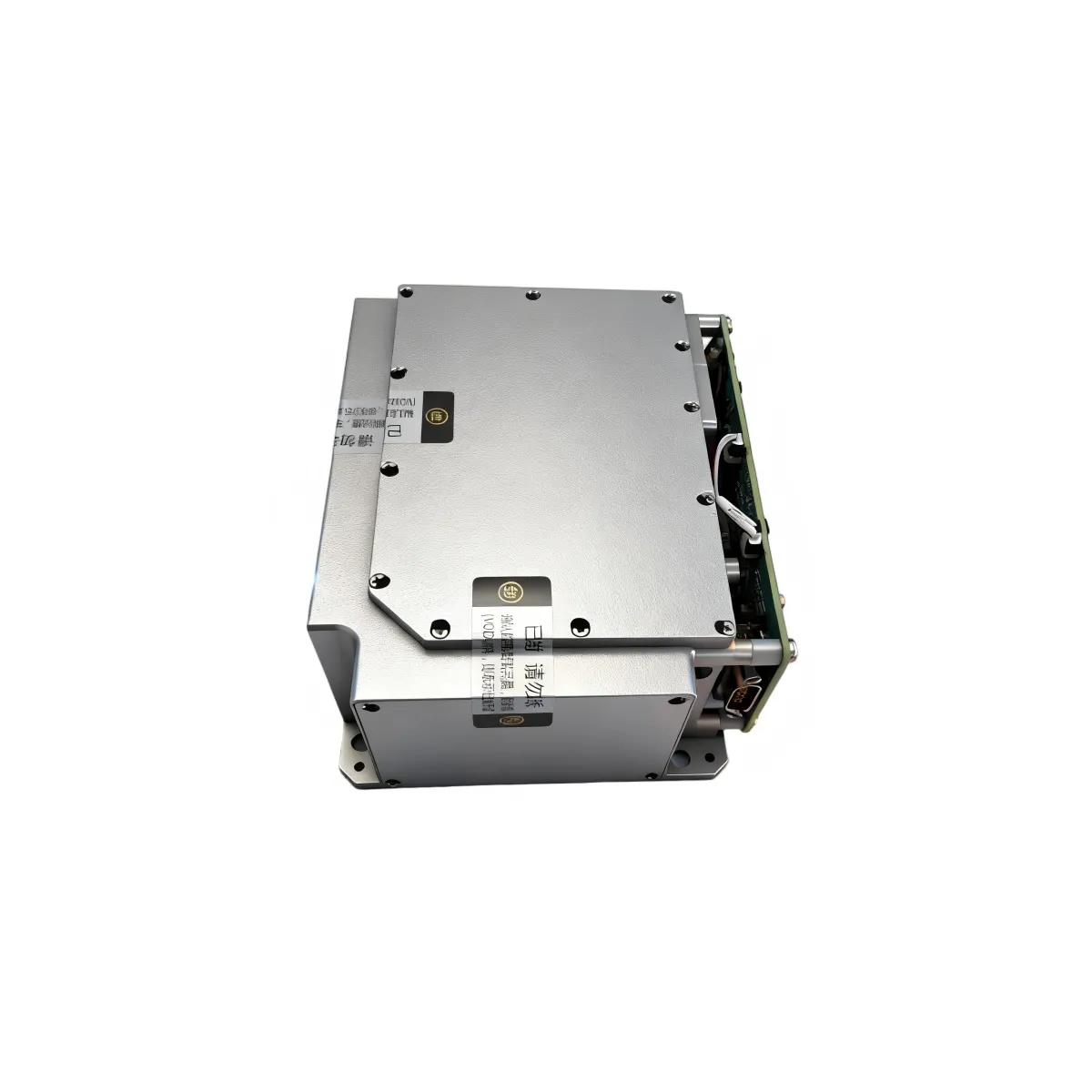

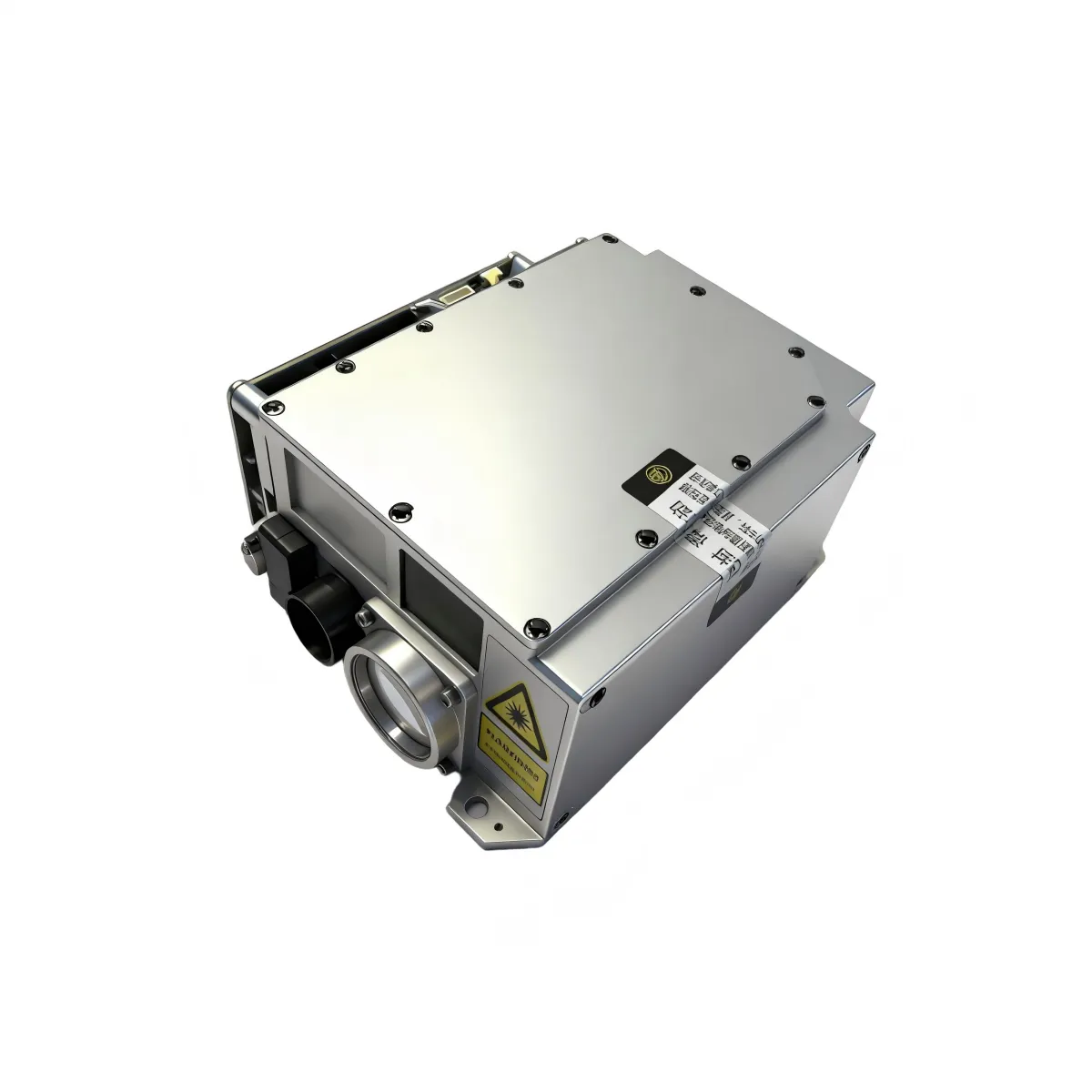

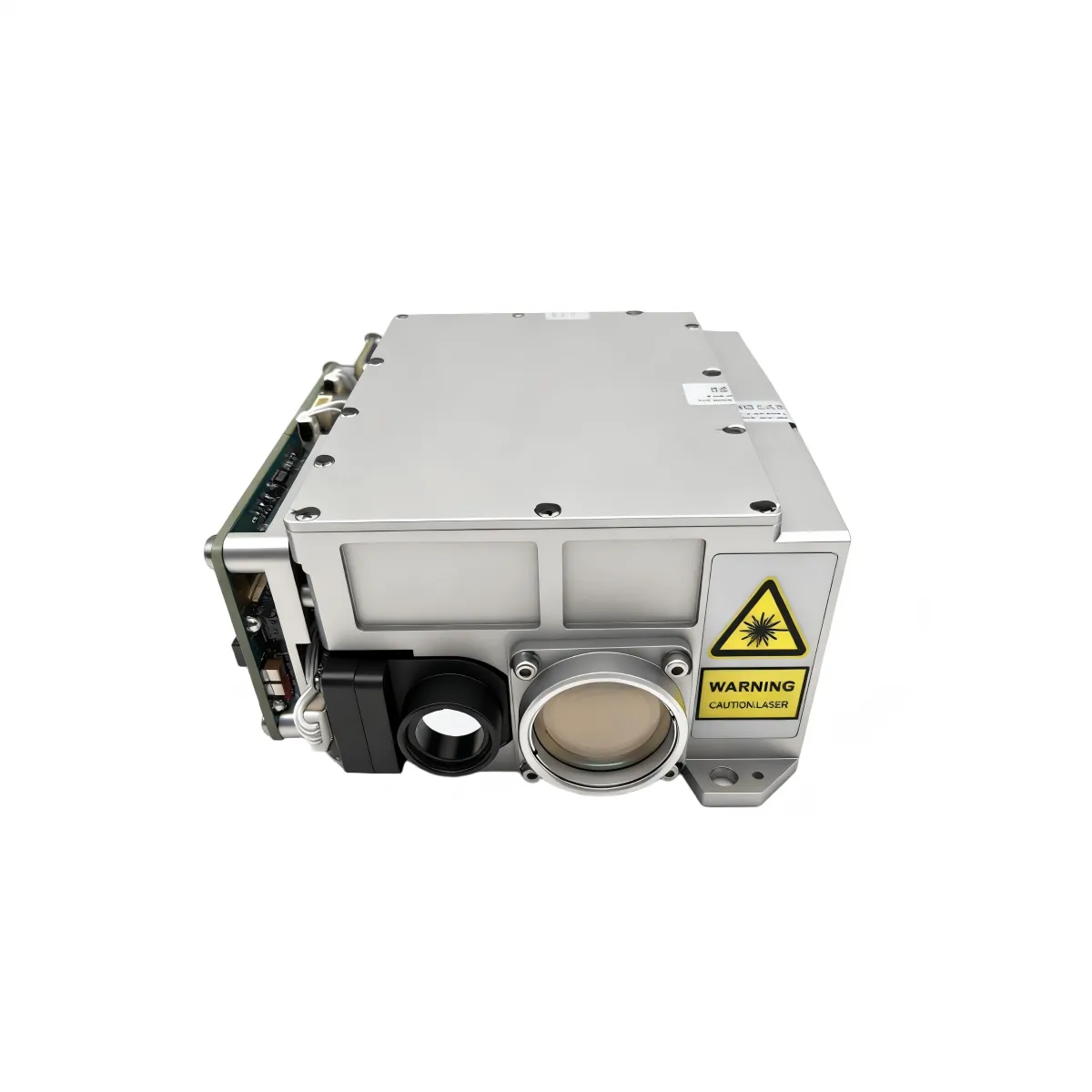

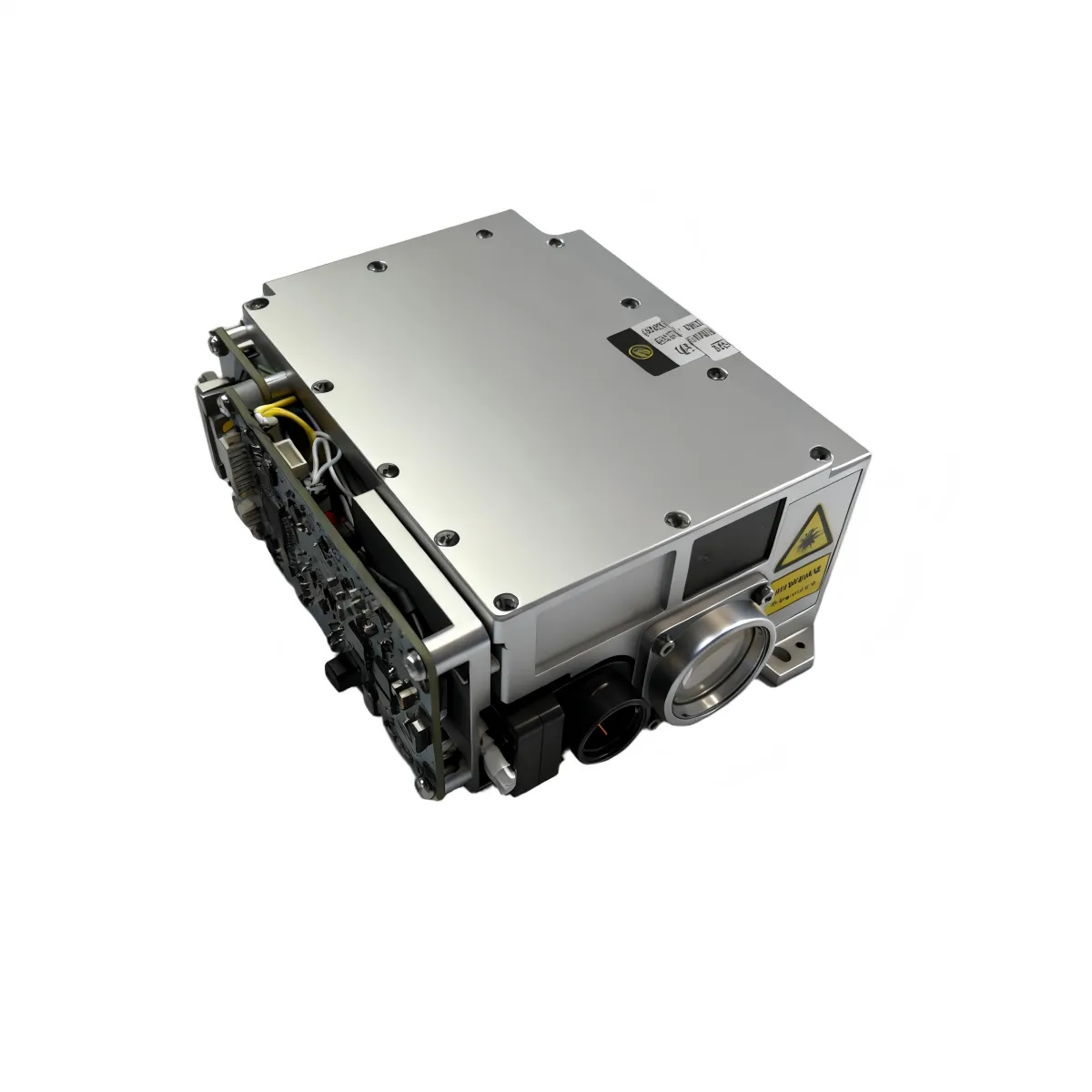

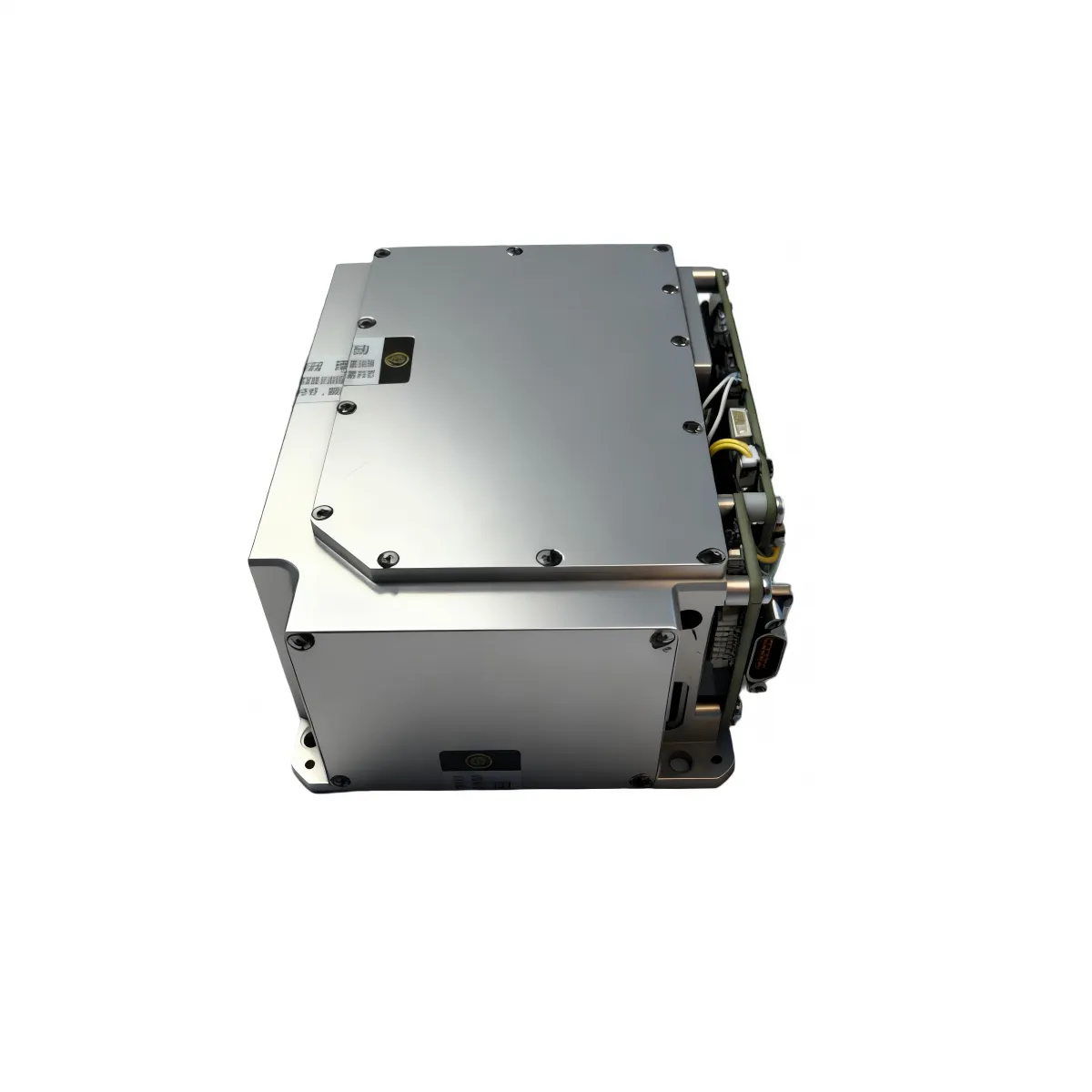

High-Power 1064nm Laser Designator System LDR60K1 for UAV and Vehicle Integration

High-Power 1064nm Laser Designator System LDR60K1 for UAV and Vehicle Integration

¥34,500.00 USD
¥34,500.00 USD
Sale Sold out
Taxes included.

The LDR60K1 is a 60 mJ 1064 nm laser target designator/rangefinder module optimized for airborne and turret-mounted applications. It offers long-range ranging up to 10 km, precise frequency-coded illumination for laser-guided weapons, and ±2 m accuracy with ≥ 98% detection probability. With compact dimensions, low SWaP, RS-422 digital control, and built-in self-test across a −40 °C to +55 °C operating range, the LDR60K1 is ideal for integration into UAV gimbals, EO/IR pods, and ground fire-control systems.

Technical Specifications

Operating modes

Ranging, designation

Pump source

Diode array

Operating wavelength

1064 nm ± 3 nm

Pulse energy

≥ 60 mJ

Pulse energy stability

Within a single designation cycle, single-pulse energy deviation ≤ ±10% of mean energy (after 2 s of emission)

Beam divergence

≤ 0.3 mrad

Pulse width

15 ns ± 5 ns

Laser optical-axis stability

≤ 0.05 mrad

Optical-axis parallelism error

≤ 0.3 mrad (relative to mounting datum)

Ranging performance

Ranging frequency

1 Hz / 5 Hz / single-shot

Continuous ranging

1 Hz: ≥ 10 min; 5 Hz: ≥ 5 min

Measurement range

300 m to ≥ 10,000 m (large target)

Ranging accuracy

±2 m

Detection rate

≥ 98%

Dimensions

≤ 116 mm × 52 mm × 96 mm

Weight

≤ 680 g

Designation performance

Laser code accuracy

≤ ±2.5 μs

Designation frequency

20 Hz fundamental (supports precise frequency coding)

Service life

≥ 1,000,000 pulses

Environmental Adaptability

Operating temp

–40°C to +55°C

Storage temp

–45°C to +65°C

OUTLINE DIMENSION

                                            ≤ 116 mm × 52 mm × 96 mm

Product Description

LDR60K1 60 mJ 1064 nm Laser Rangefinder & Target Designator

The LDR60K1 is a high-performance 1064nm laser target designator integrating coded laser illumination and precision laser ranging in a single compact unit, engineered for demanding airborne and ground-based weapon guidance applications. Featuring 60mJ pulse energy with a maximum ranging capability of 10 kilometers and beam divergence controlled below 0.3mrad for highly concentrated energy at extended ranges, this product is widely deployed in airborne EO/IR pods, helicopter turrets, armored vehicle fire control systems, and coastal defense installations.

For reliability, the LDR60K1 implements a three-level self-test architecture including power-up, periodic, and commanded self-test functions to ensure continuous operational readiness. The product delivers an operational lifetime exceeding one million laser pulses, operates across a temperature range from -40°C to +55°C, withstands swept sine vibration from 15Hz to 33Hz at 0.91mm constant displacement, transitioning to 2g constant acceleration from 33Hz to 700Hz for 1 hour per axis; shock is 10g tri-axial with post-peak sawtooth waveform, 11ms duration; and features full conformal coating protection for operation in humid, salt-spray, and other harsh battlefield environments.

For system integration, the LDR60K1 employs RS-422 differential serial communication for superior EMI immunity, equipped with the standard J30J-15ZKP military connector. Distance data and status bytes are automatically output after each measurement or designation burst, facilitating system integration and health monitoring. The wide 18V to 32V input range perfectly matches all military 28V platforms, with standby power consumption below 5W and peak power not exceeding 120W.

For guidance performance, the LDR60K1 operates at a 20Hz standard base frequency compatible with all laser-guided weapon systems, featuring 8 pre-stored codes with coding accuracy better than 2.5μs and beam pointing stability controlled within 0.05mrad for sustained, precise target illumination at extreme ranges. Both short and long cycle operation modes are supported: short cycle mode provides 17 seconds of continuous illumination with 10-second intervals, supporting up to 6 consecutive cycles; long cycle mode provides 47 seconds of continuous illumination with 30-second intervals, supporting up to 2 consecutive cycles, allowing flexible selection based on tactical requirements.

For ranging capability, three measurement modes are supported: 1Hz, 5Hz, and single-shot. Minimum range is 300 meters and maximum range is 10 kilometers, with ranging accuracy maintained at ±2 meters and acquisition probability no less than 98%. The envelope dimensions are controlled within 116mm × 52mm × 96mm and weight does not exceed 680 grams, making it ideal for SWaP-constrained platform applications.
