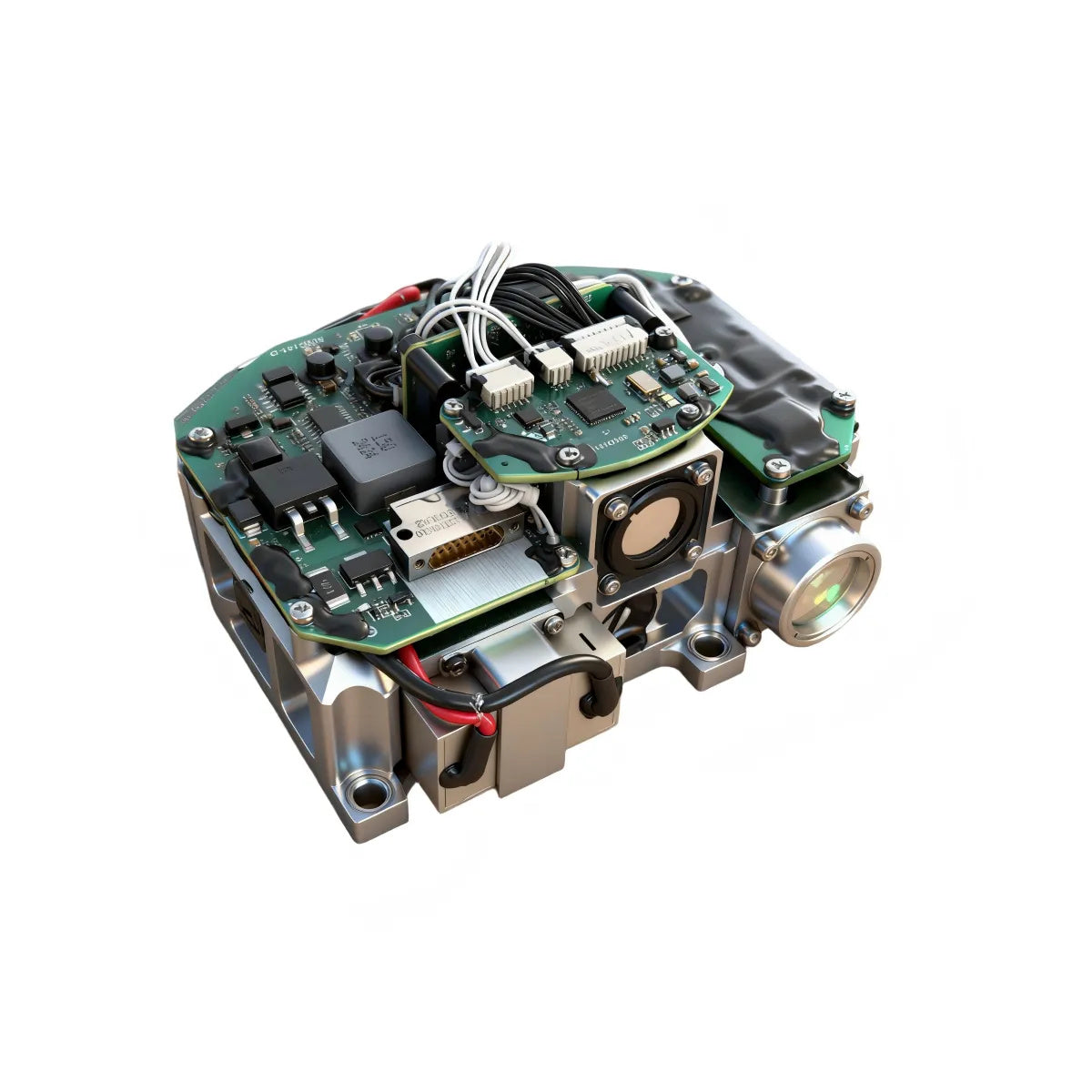

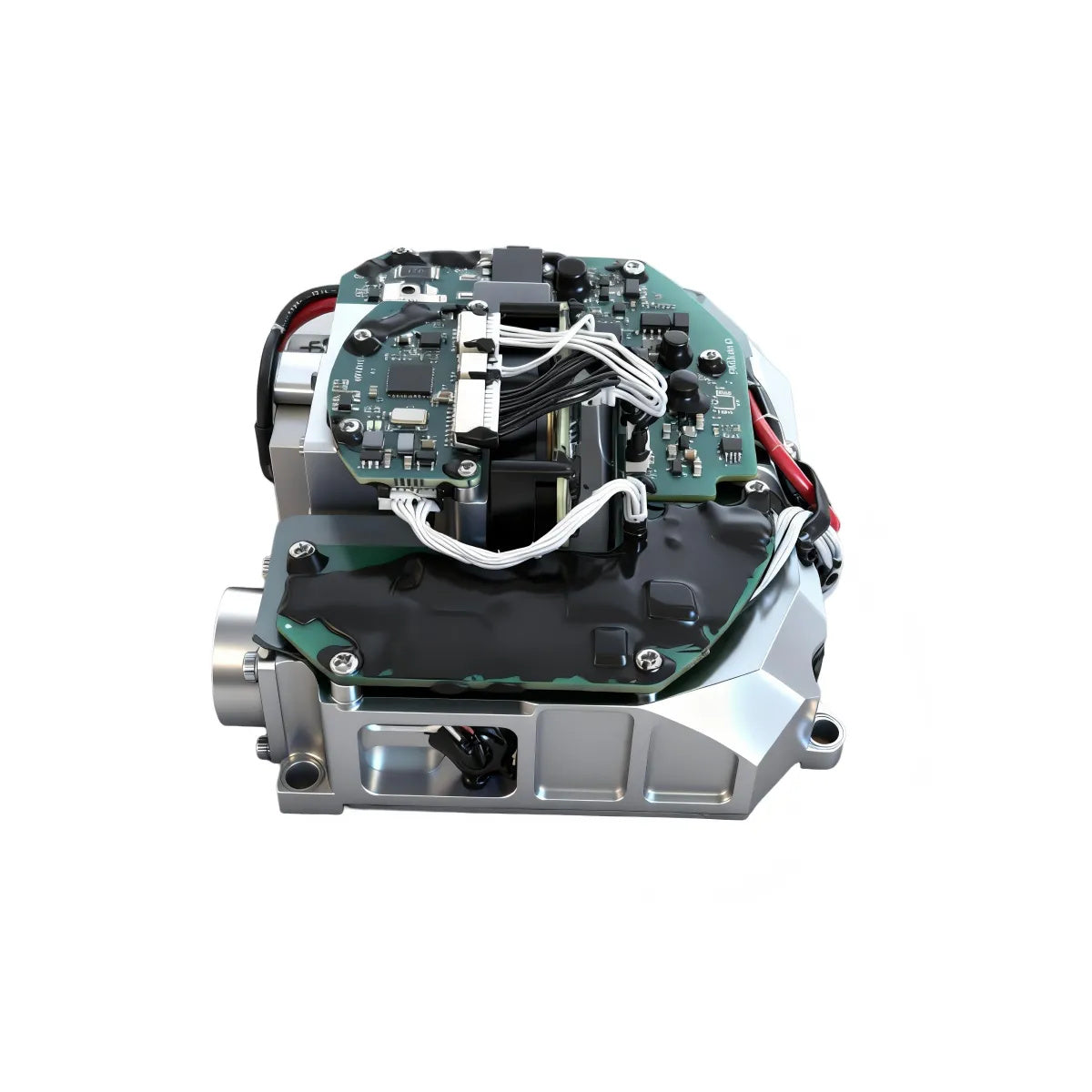

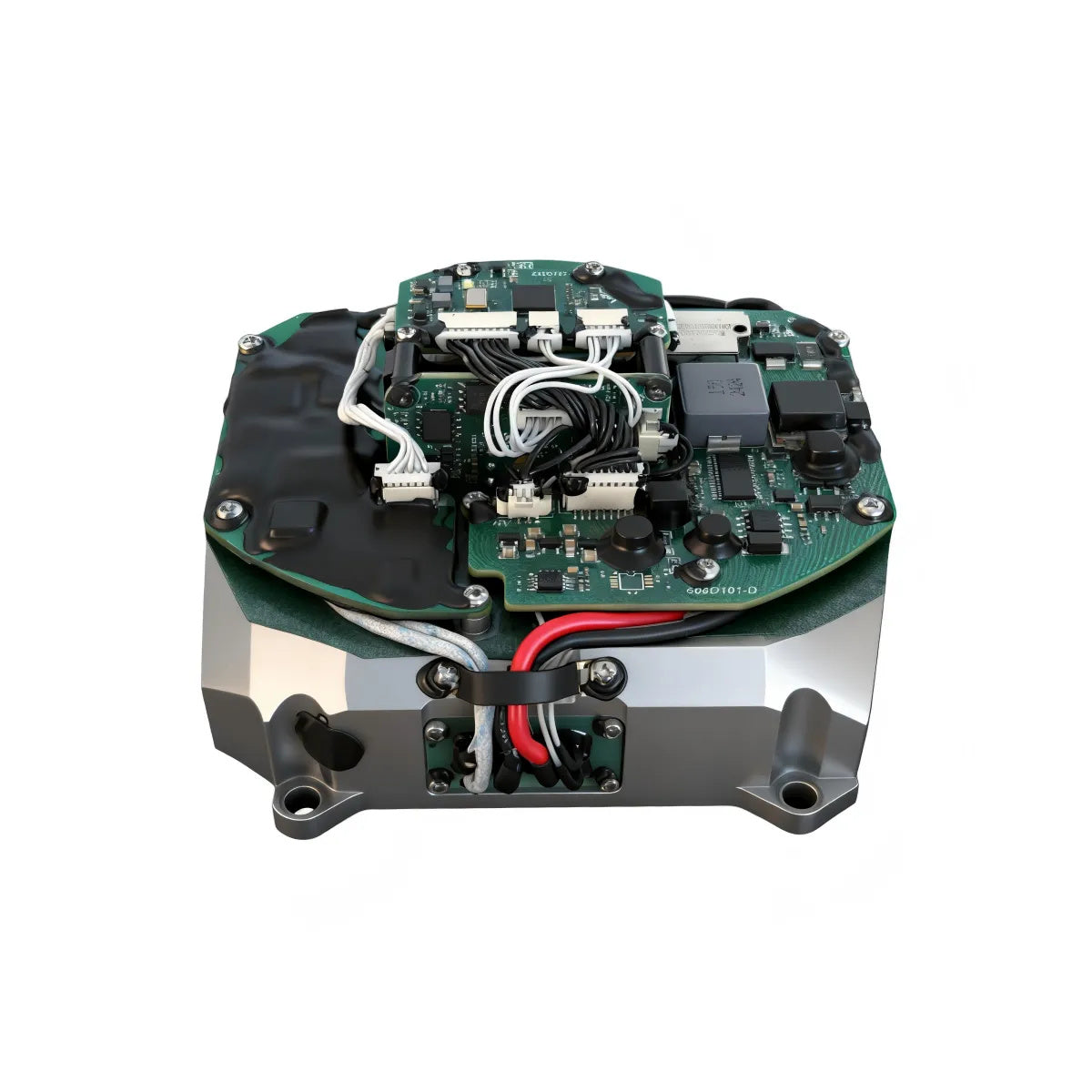

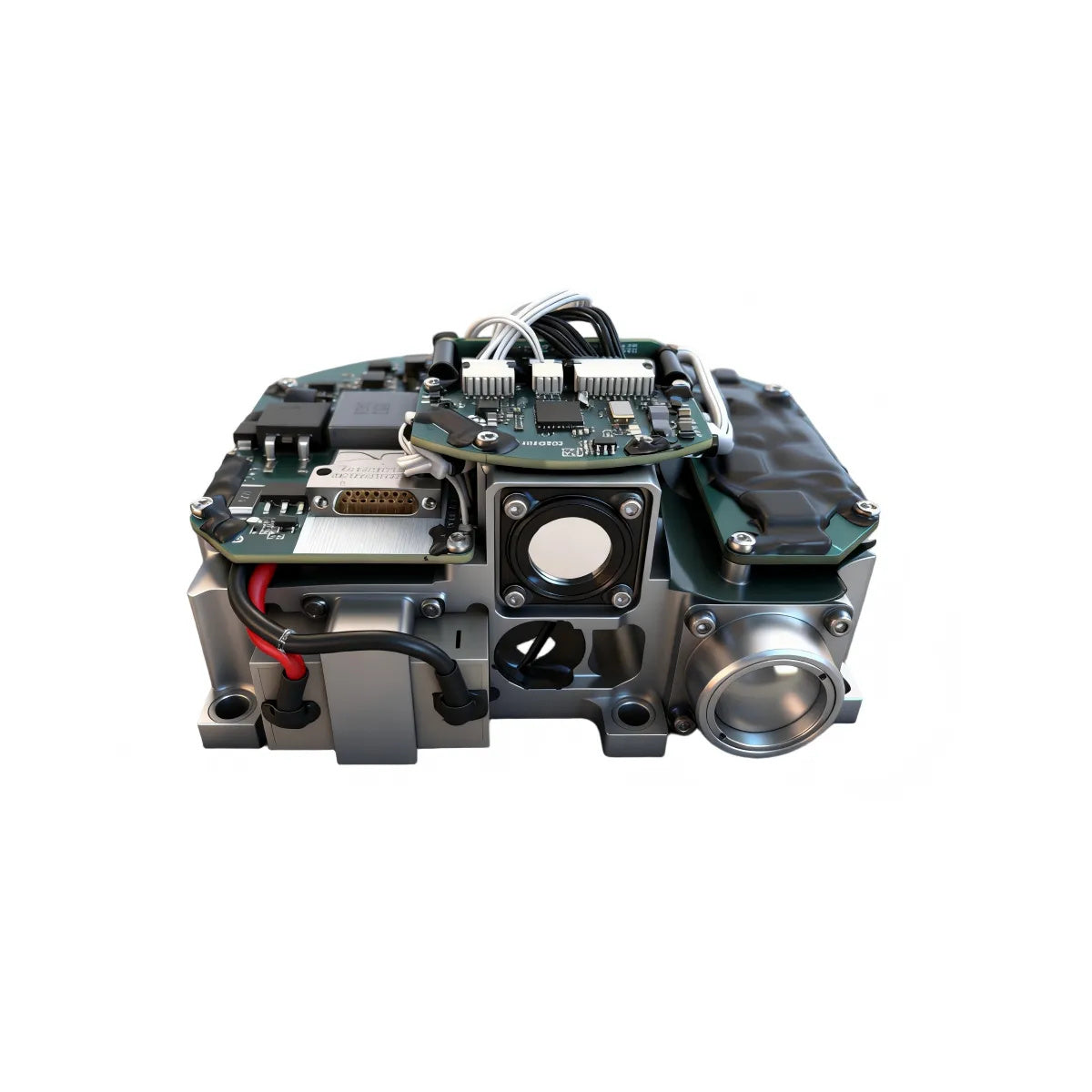

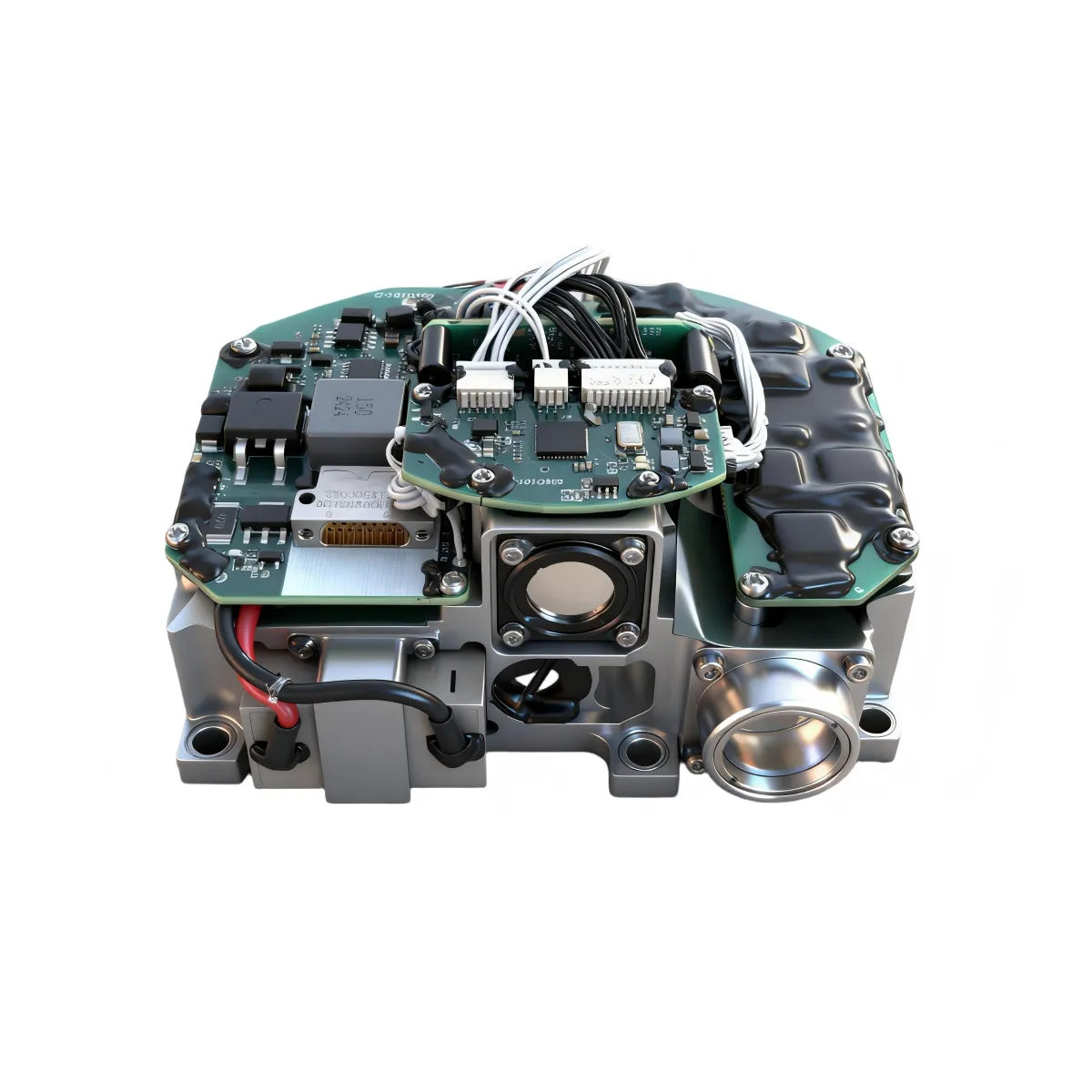

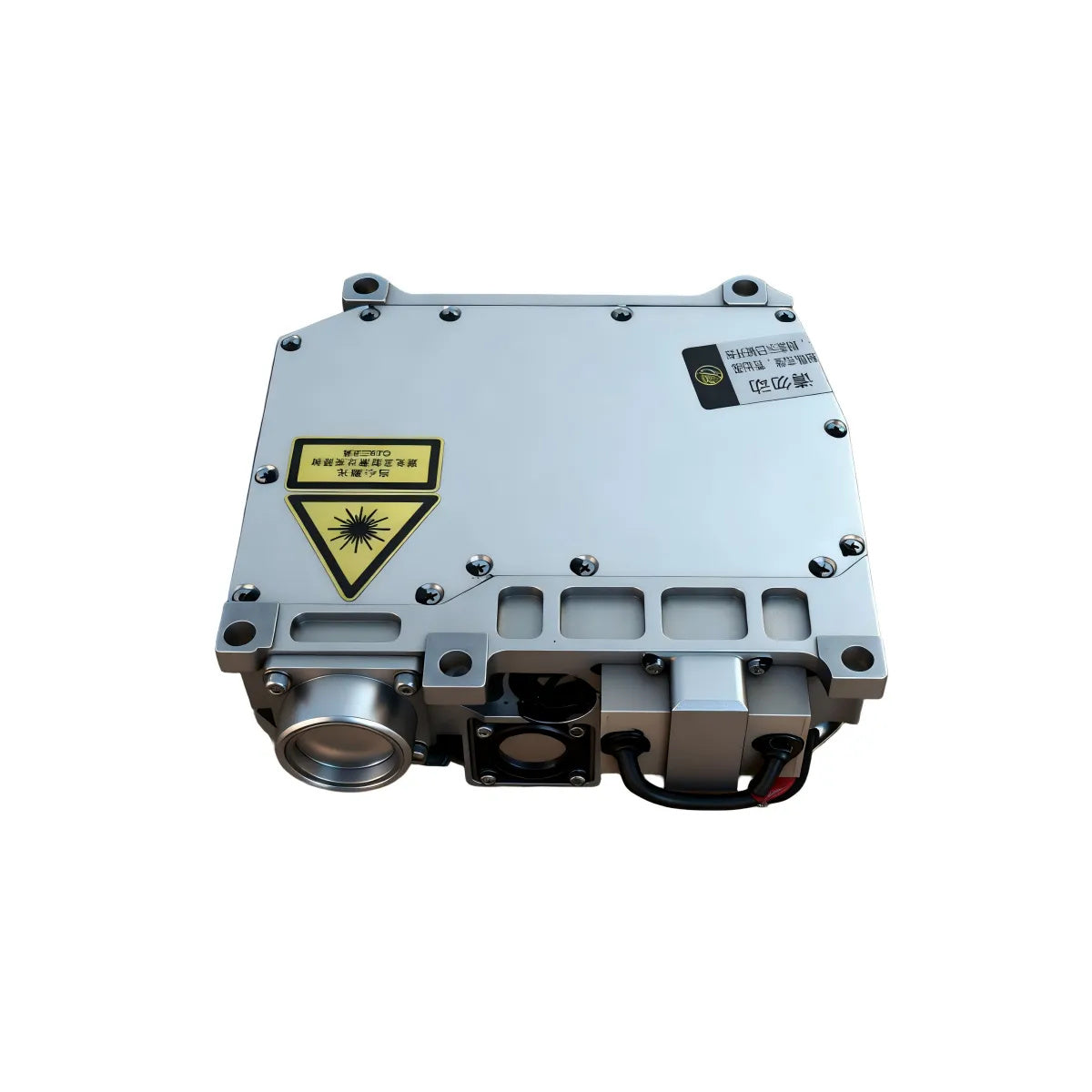

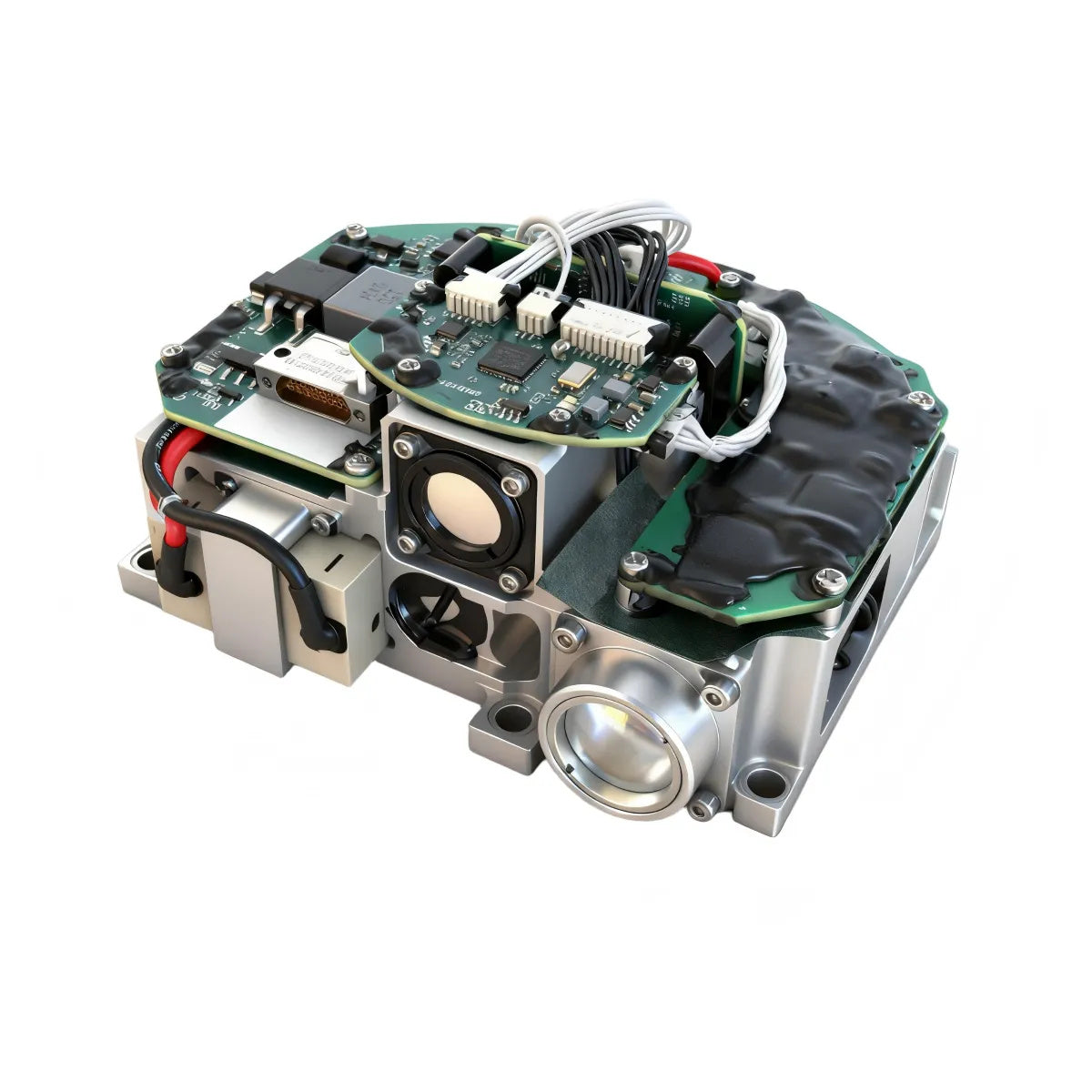

ERDI LDR40K3 （5KM） Laser Target Designator Module – High-Precision Industrial Laser System
ERDI LDR40K3 （5KM） Laser Target Designator Module – High-Precision Industrial Laser System
Couldn't load pickup availability
Compact High-Precision Laser Solution for UAV, Electro-Optical Pods and Advanced Platforms
The ERDI LDR40K3 is a compact high-performance 1064nm solid-state laser rangefinder and target designator module designed for integration into advanced electro-optical systems, including UAV gimbals, airborne pods, vehicle-mounted systems, and precision sensing platforms.
Featuring ≥25mJ pulse energy, configurable beam divergence, and coded laser designation capability, the LDR40K3 delivers accurate long-range measurement beyond 5.2 km with excellent reliability and stability.
With its compact mechanical design, lightweight structure, low power consumption, and MIL-style environmental adaptability, the LDR40K3 provides an ideal laser solution for customers requiring high precision, fast response, and flexible system integration.
Key Features
High Precision Long-Range Measurement
- Measurement range up to 5,200 meters
- Ranging accuracy: ±2 meters
- Vehicle-sized target detection capability
- Single-shot and continuous ranging modes supported
The LDR40K3 provides reliable distance measurement data for real-time decision-making in complex environments.
Integrated Laser Designation Capability
The built-in coded laser designation function supports:
- Designation range ≥2 km
- 20Hz coded illumination frequency
- Configurable designation modes
- Accurate laser target marking
It is suitable for integration with electro-optical payload systems requiring precise laser guidance and target positioning.
Compact Design for System Integration
Designed for space-limited platforms:
- Weight: ≤380g
- Dimensions: 68mm × 52mm × 90mm
- Power supply: 20–28V DC
The compact form factor enables easy installation into:
- UAV electro-optical pods
- Drone gimbal payloads
- Airborne optical systems
- Vehicle-mounted platforms
- Customized optoelectronic equipment
Application Scenarios
UAV Electro-Optical Payload Systems
The LDR40K3 provides lightweight laser measurement and designation capability for unmanned aerial platforms.
Typical applications include:
- UAV reconnaissance systems
- Drone-based observation platforms
- Long-distance target measurement
- Intelligent aerial sensing systems
Airborne Surveillance Platforms
Combined with EO/IR imaging systems, the LDR40K3 enables:
- Accurate distance acquisition
- Target positioning assistance
- Real-time data transmission
- Enhanced situational awareness
Vehicle-Mounted Electro-Optical Systems
The compact laser module can be integrated into stabilized optical systems for:
- Mobile observation platforms
- Remote sensing equipment
- Precision measurement systems
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | LDR40K3 |
| Laser Type | 1064nm Solid-State Laser |
| Wavelength | 1.064 ± 0.003 μm |
| Pulse Energy | ≥25 mJ |
| Ranging Distance | 120m to ≥5,200m (Vehicle-sized target) |
| Designation Distance | ≥2 km |
| Ranging Accuracy | ±2m |
| Ranging Frequency | 1Hz / 5Hz / Single-shot |
| Designation Frequency | 20Hz (Coded) |
| Beam Divergence | ≤0.6 mrad |
| Hit Rate | ≥98% |
| Communication Interface | RS-422 / TTL |
| Supply Voltage | 20–28V |
| Average Power Consumption | ≤50W |
| Operating Temperature | -40°C to +60°C |
| Dimensions | 68mm × 52mm × 90mm |
| Weight | ≤380g |
Control Functions
The LDR40K3 supports comprehensive digital control functions:
Ranging Control
- Ranging command response
- Stop command response
- Distance data output after each measurement pulse
- Range gate configuration
- Automatic ranging timeout protection
Designation Control
- Configurable designation mode
- Programmable laser coding
- Designation command response
- Automatic designation cycle stop
- Distance and status output during operation
System Monitoring
- Power-on self-test
- Periodic self-test
- Status information reporting
- Laser pulse count recording
Electrical Interface
TTL Communication Interface
Connector:
- Socket: MOLEX 53048-0810
- Mating Plug: MOLEX 51021-0800
| Pin No. | Signal | Description |
|---|---|---|
| 1 | 24V | Power Supply + |
| 2 | 24V | Power Supply + |
| 3 | 24V GND | Power Return (-) |
| 4 | 24V GND | Power Return (-) |
| 5 | Reserved | — |
| 6 | TTL_RX | Host → Laser Module |
| 7 | TTL_TX | Laser Module → Host |
| 8 | TTL_GND | Serial Ground |
Why Choose ERDI LDR40K3?
✔ Compact and lightweight laser module
✔ Long-range precision measurement capability
✔ Integrated ranging and designation functions
✔ Designed for UAV and electro-optical applications
✔ Flexible communication interface
✔ Reliable performance in harsh environments
✔ Customization support available
