Lightweight 10km Laser Measurement and Precision Designation Module for UAV & EO/IR Systems

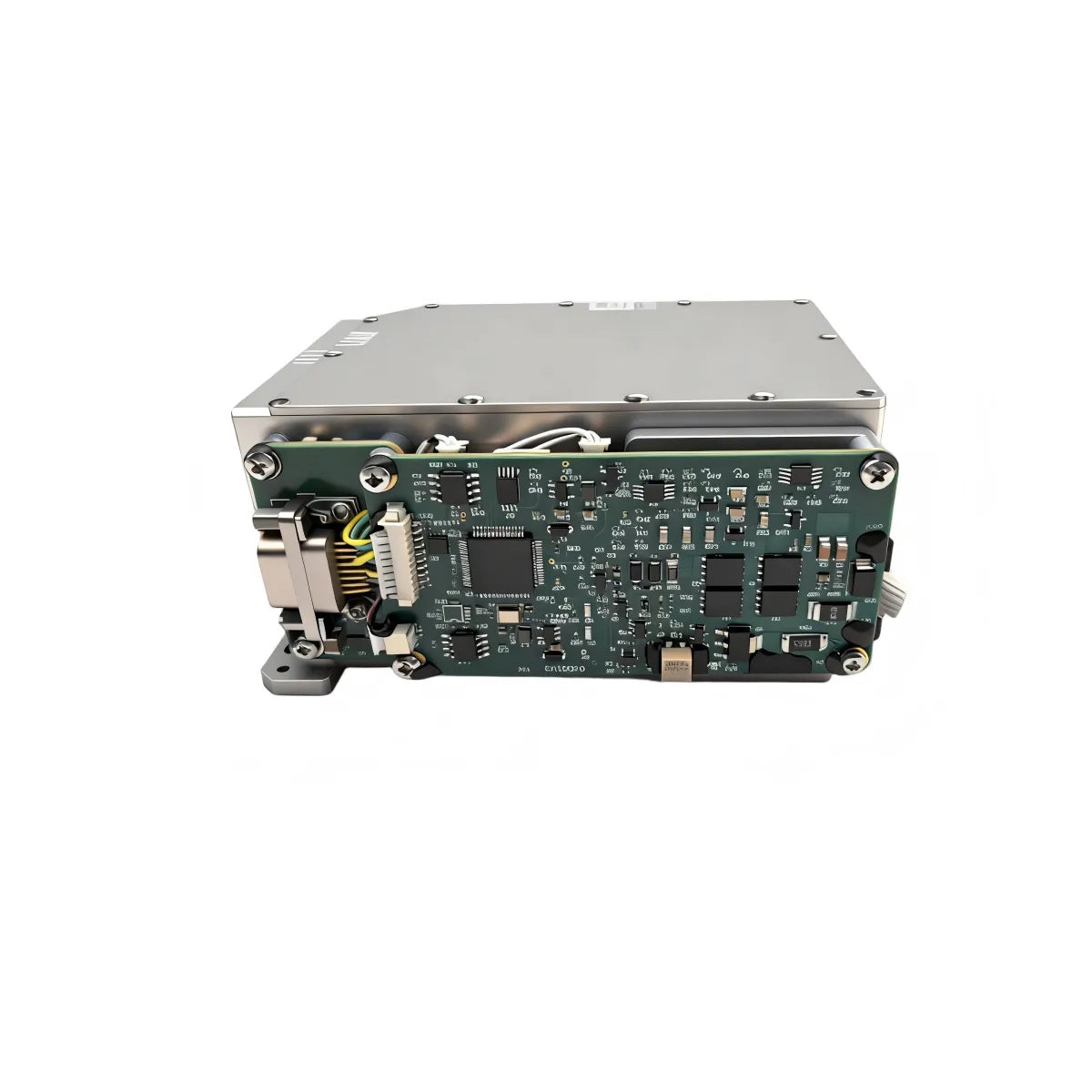

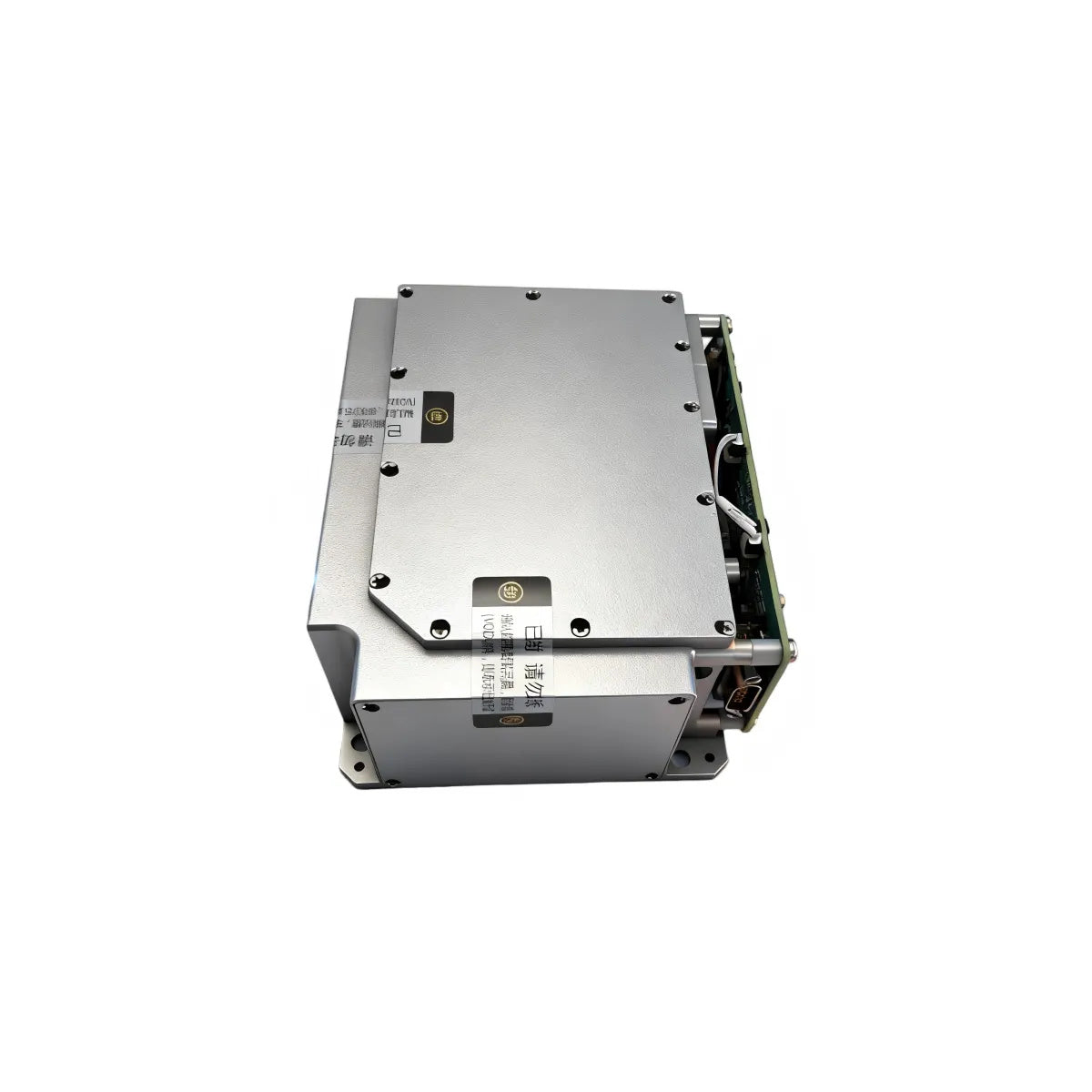

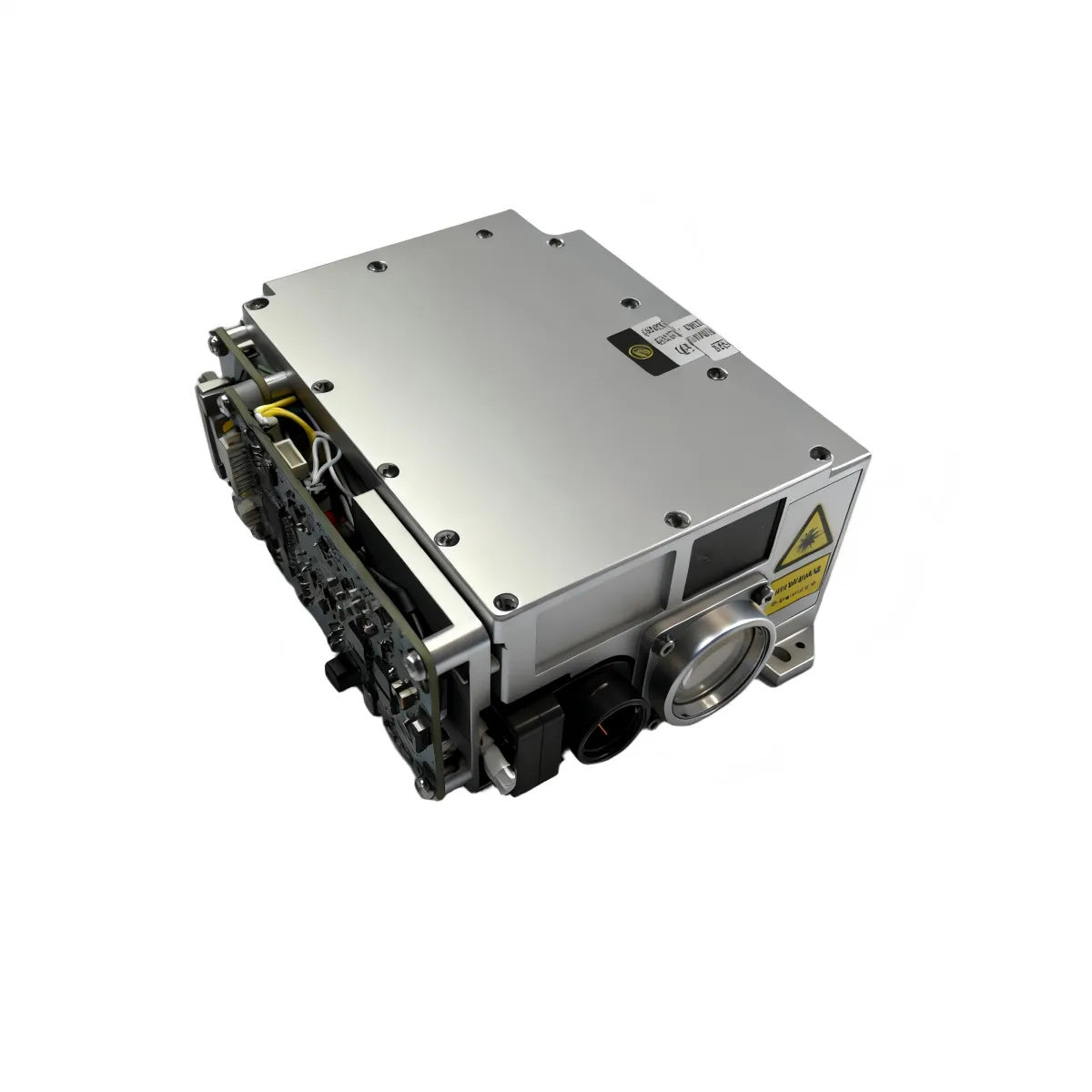

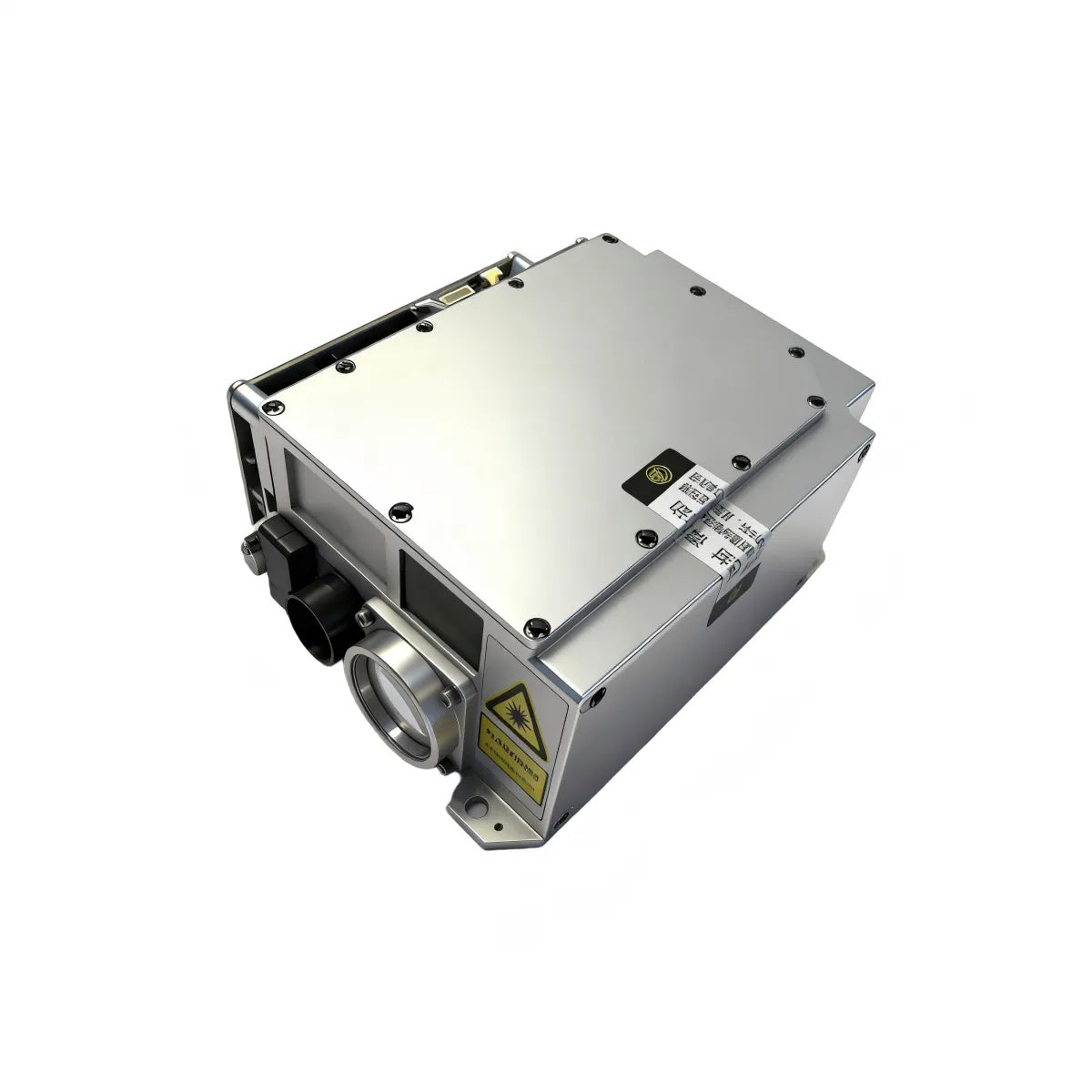

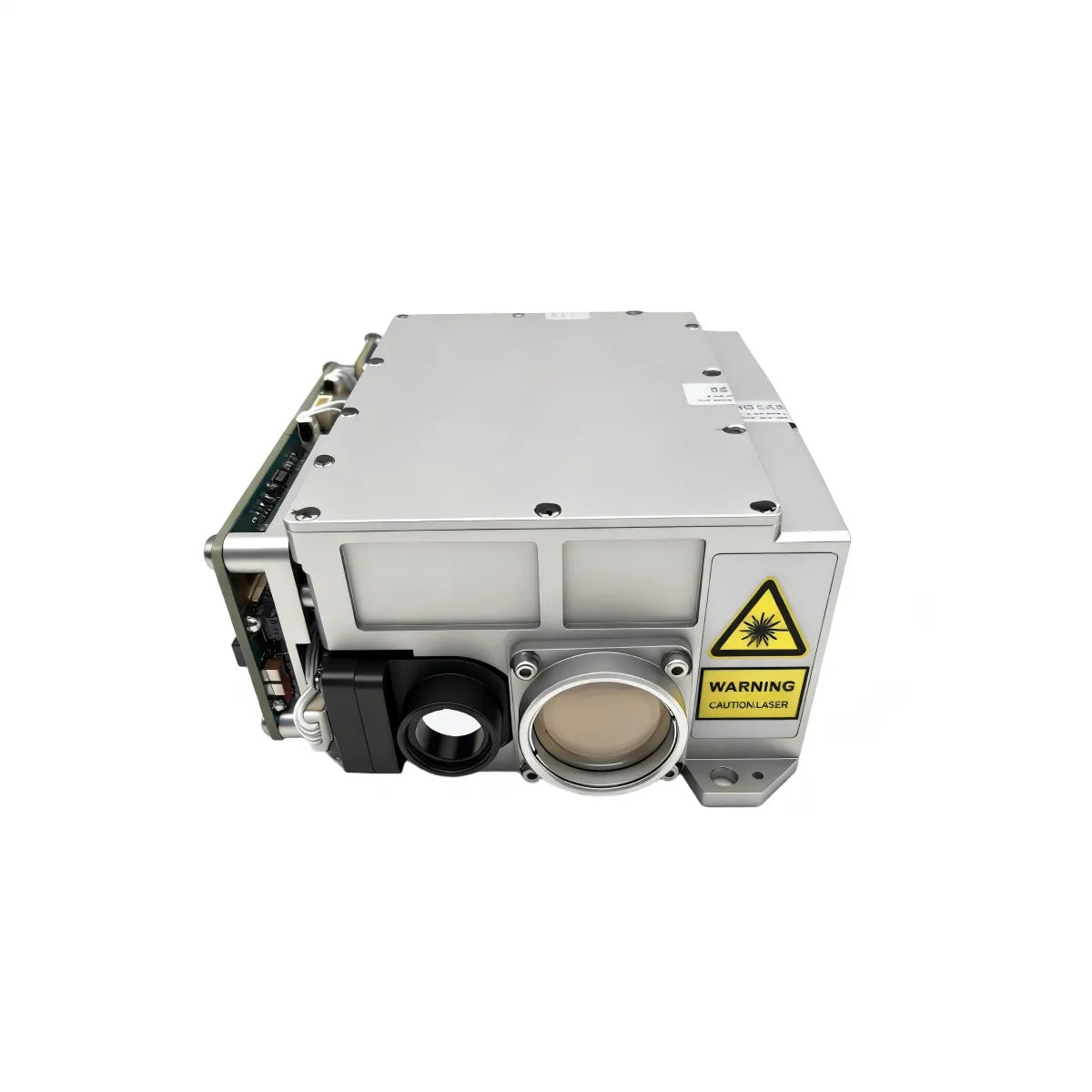

The ERDI LDR60K1 is a compact high-performance 1064nm laser rangefinder and target designator module designed for advanced airborne and ground-based electro-optical platforms.
Combining 60mJ laser pulse energy, precision coded laser illumination, and high-accuracy ranging capability, the LDR60K1 provides reliable measurement up to 10 kilometers with ±2m ranging accuracy and a ≥98% detection probability.
With its lightweight structure, low SWaP (Size, Weight and Power) design, RS-422 digital communication interface, and rugged environmental adaptability, the LDR60K1 is optimized for integration into:
- UAV electro-optical pods
- EO/IR gimbal systems
- Vehicle-mounted fire-control platforms
- Airborne surveillance systems
- Coastal and border monitoring systems
Product Highlights
1. 10km Long-Range Laser Measurement
The LDR60K1 provides accurate distance measurement for long-range sensing applications.
Ranging Capability
✔ Measurement range: 300m to ≥10km
✔ Accuracy: ±2m
✔ Detection probability: ≥98%
✔ Operating modes:
- 1Hz ranging
- 5Hz ranging
- Single-shot measurement
The system provides stable distance information for real-time mission applications.
2. Precision Laser Designation Capability
The LDR60K1 integrates advanced coded laser illumination technology.
Designation Performance
Laser energy:
≥60mJ
Laser frequency:
20Hz fundamental frequency
Coding accuracy:
≤±2.5μs
Beam divergence:
≤0.3mrad
The narrow laser beam provides high energy concentration and accurate target illumination over extended distances.

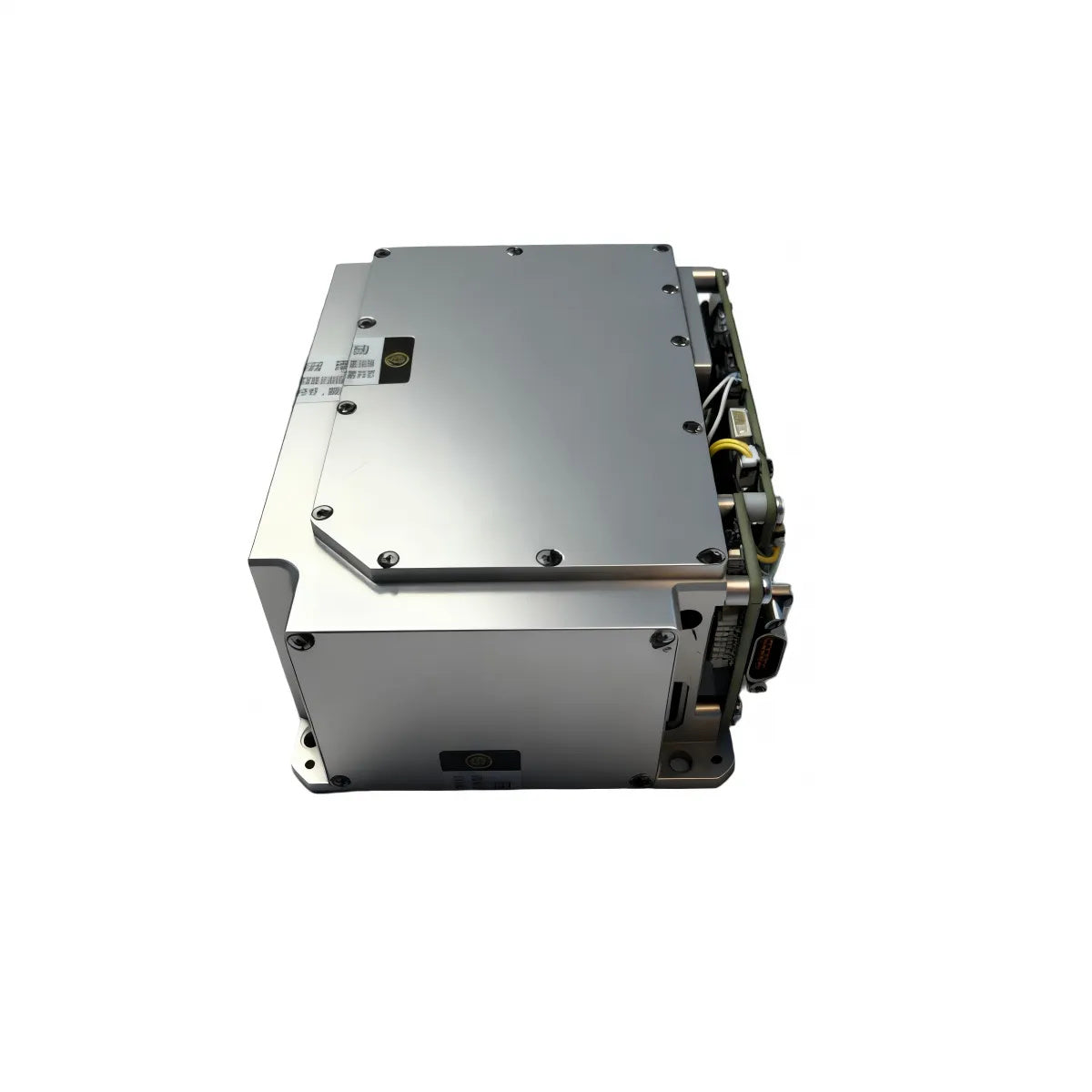

3. Lightweight Compact Design for UAV Integration
The LDR60K1 is designed for platforms where payload size and weight are critical.
Mechanical Characteristics
Dimensions:
≤116 × 52 × 96mm
Weight:
≤680g
This compact form factor makes it ideal for:
- Small and medium UAV payloads
- Stabilized EO/IR gimbals
- Lightweight airborne systems
4. High Reliability for Harsh Environments
The LDR60K1 is designed for demanding outdoor and professional applications.
Environmental Capability
Operating temperature:
-40°C to +55°C
Storage temperature:
-45°C to +65°C
Service life:
≥1,000,000 laser pulses
The system supports reliable operation in challenging environments including:
- High humidity
- Salt spray environments
- Field deployment conditions
5. Advanced Self-Test & System Monitoring
The LDR60K1 integrates a three-level self-test system:
Built-in Test Functions
✔ Power-on self-test
✔ Periodic self-test
✔ Command-controlled self-test
The system continuously monitors operational status and improves mission reliability.
Application Scenarios
UAV Electro-Optical Pods
The LDR60K1 provides lightweight laser measurement and designation capability for:
- UAV reconnaissance
- Drone surveillance
- Airborne target measurement
- Intelligent sensing platforms
EO/IR Gimbal Systems
Combined with:
- Visible cameras
- Infrared sensors
- Stabilized gimbals
The LDR60K1 improves:
- Target positioning accuracy
- Distance measurement capability
- Mission effectiveness
Ground Fire-Control Systems
Suitable for:
- Vehicle-mounted optical systems
- Remote observation platforms
- Precision laser support systems
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | LDR60K1 |
| Product Type | Laser Rangefinder & Target Designator |
| Operating Wavelength | 1064nm ±3nm |
| Pump Source | Diode Array |
| Pulse Energy | ≥60mJ |
| Beam Divergence | ≤0.3mrad |
| Pulse Width | 15ns ±5ns |
| Optical Axis Stability | ≤0.05mrad |
| Optical Axis Parallelism | ≤0.3mrad |
| Ranging Frequency | 1Hz / 5Hz / Single-shot |
| Measurement Range | 300m to ≥10km |
| Ranging Accuracy | ±2m |
| Detection Probability | ≥98% |
| Designation Frequency | 20Hz |
| Coding Accuracy | ≤±2.5μs |
| Service Life | ≥1,000,000 pulses |
| Dimensions | ≤116×52×96mm |
| Weight | ≤680g |
| Communication Interface | RS-422 |
| Operating Temperature | -40°C to +55°C |
Laser Designation Operating Modes
Short Cycle Mode
- Continuous illumination: 17 seconds
- Interval: 10 seconds
- Up to 6 consecutive cycles
Long Cycle Mode
- Continuous illumination: 47 seconds
- Interval: 30 seconds
- Up to 2 consecutive cycles
This flexible operation allows users to select the optimal mode according to mission requirements.
Communication & Integration
RS-422 Digital Interface
The LDR60K1 uses RS-422 differential communication for:
- High electromagnetic interference resistance
- Reliable digital control
- Status monitoring
- Data output after ranging/designation
Compatible with:
- UAV flight control systems
- EO/IR payload controllers
- Vehicle mission systems
Power Requirements
Input voltage:
18V–32V DC
Typical:
28V military power systems
Power characteristics:
- Standby consumption: <5W
- Peak power: ≤120W
Why Choose ERDI LDR60K1?
✔ 10km laser ranging capability
✔ 60mJ laser pulse energy
✔ Lightweight ≤680g design
✔ Compact UAV integration size
✔ ±2m high accuracy measurement
✔ 20Hz coded designation
✔ RS-422 digital control
✔ Million-pulse service life
✔ Harsh environment operation capability
Typical Applications
- UAV Electro-Optical Pods
- EO/IR Gimbal Payloads
- Airborne Surveillance Systems
- Vehicle-Mounted Fire Control Systems
- Coastal Monitoring Systems
- Border Security Optical Platforms
- Precision Laser Measurement Systems
