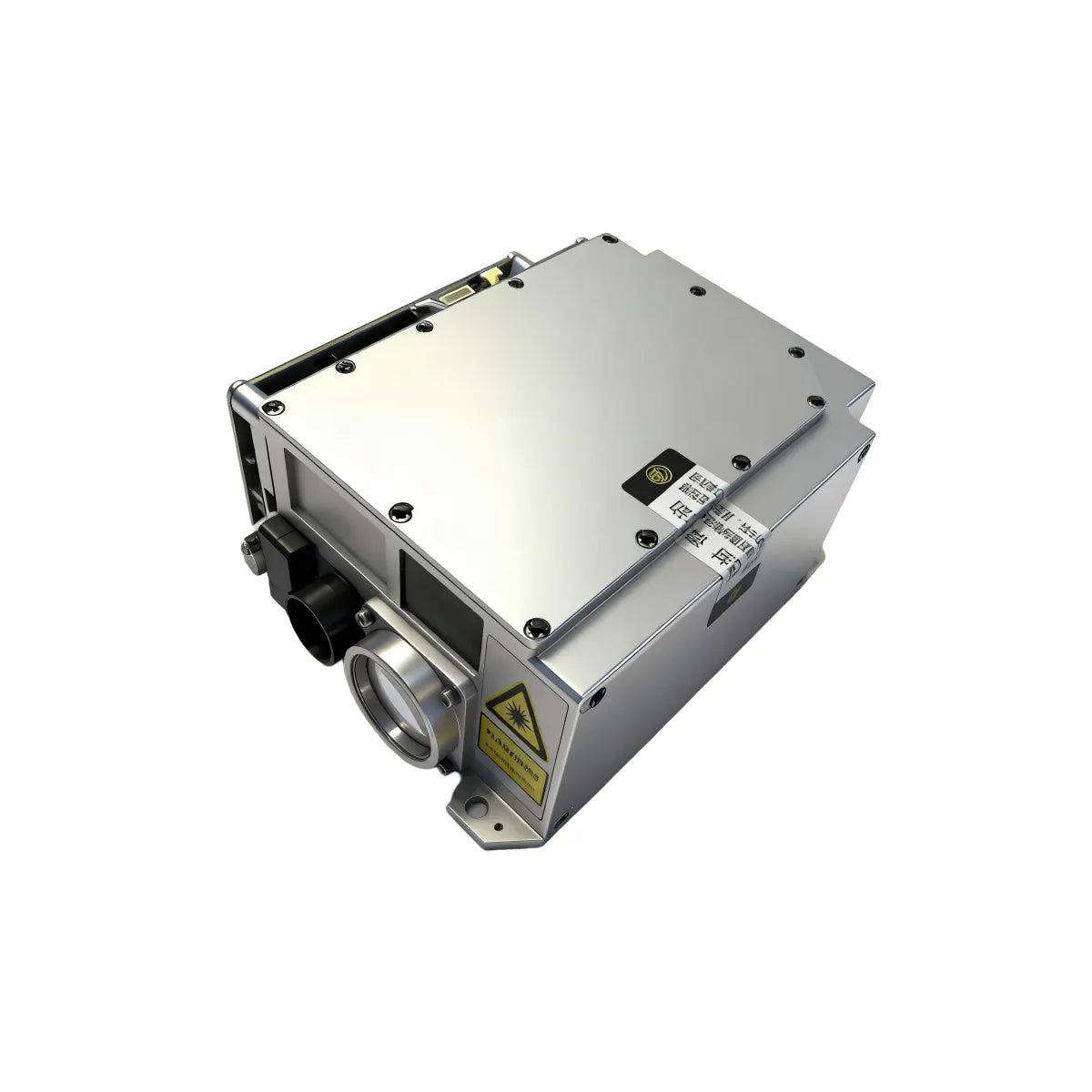

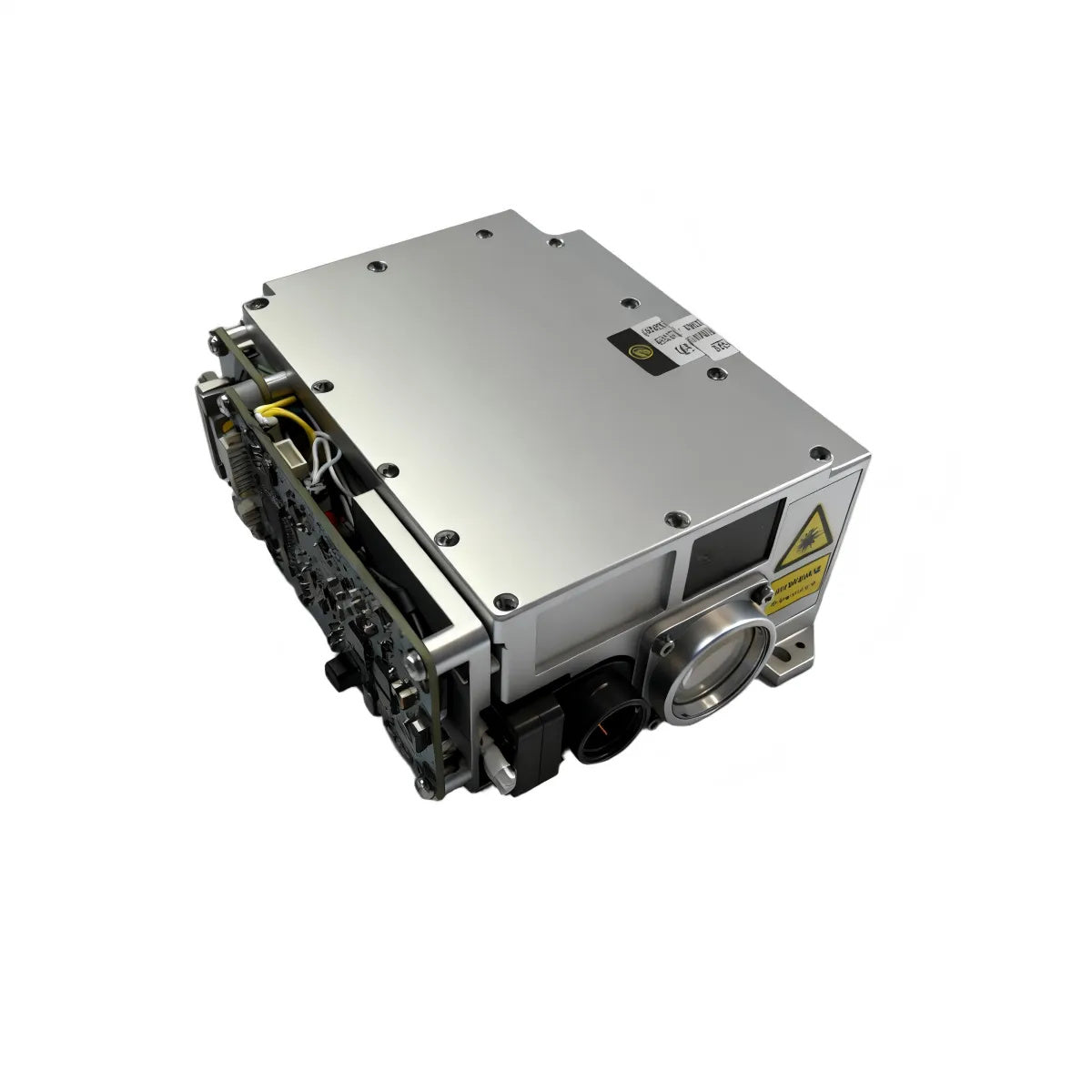

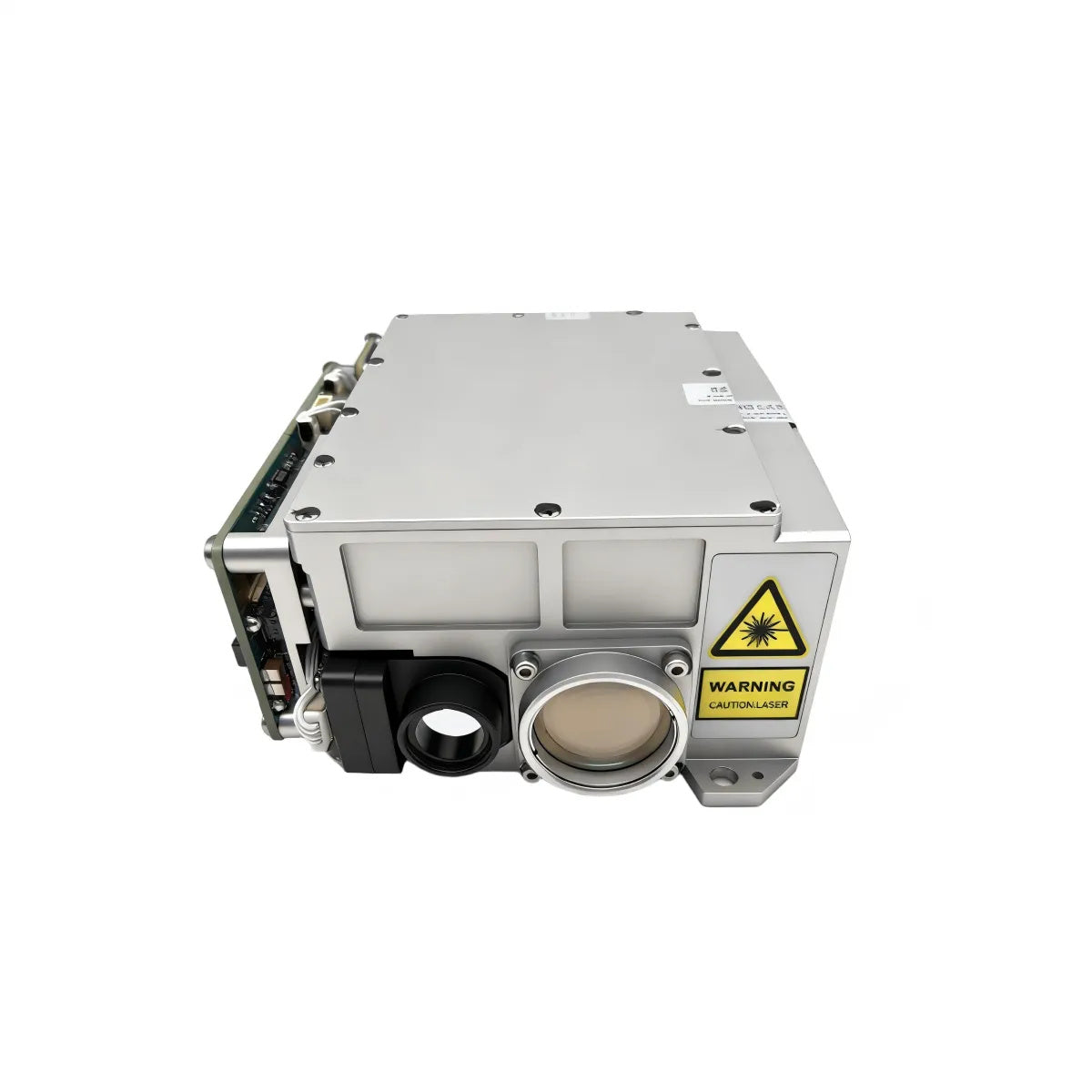

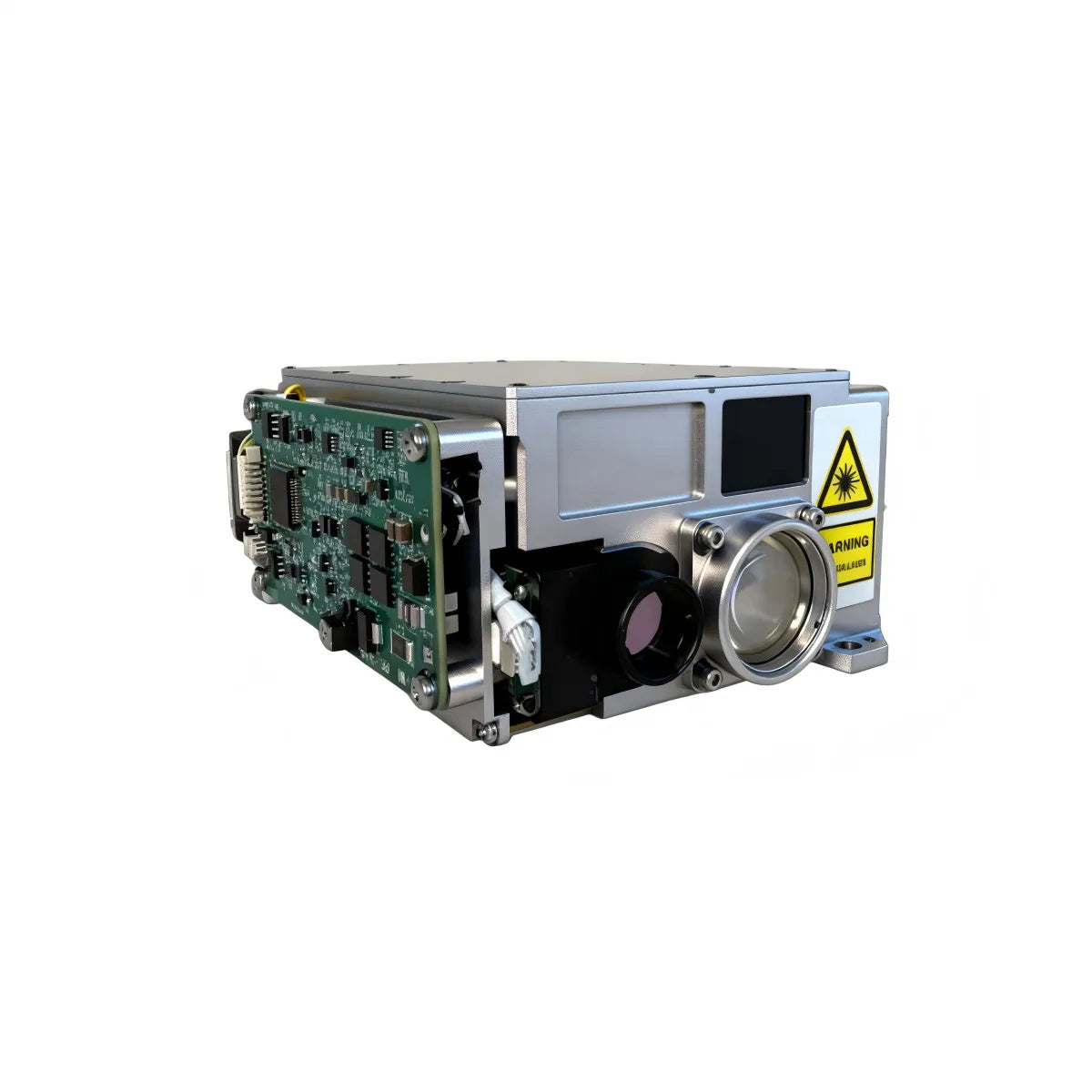

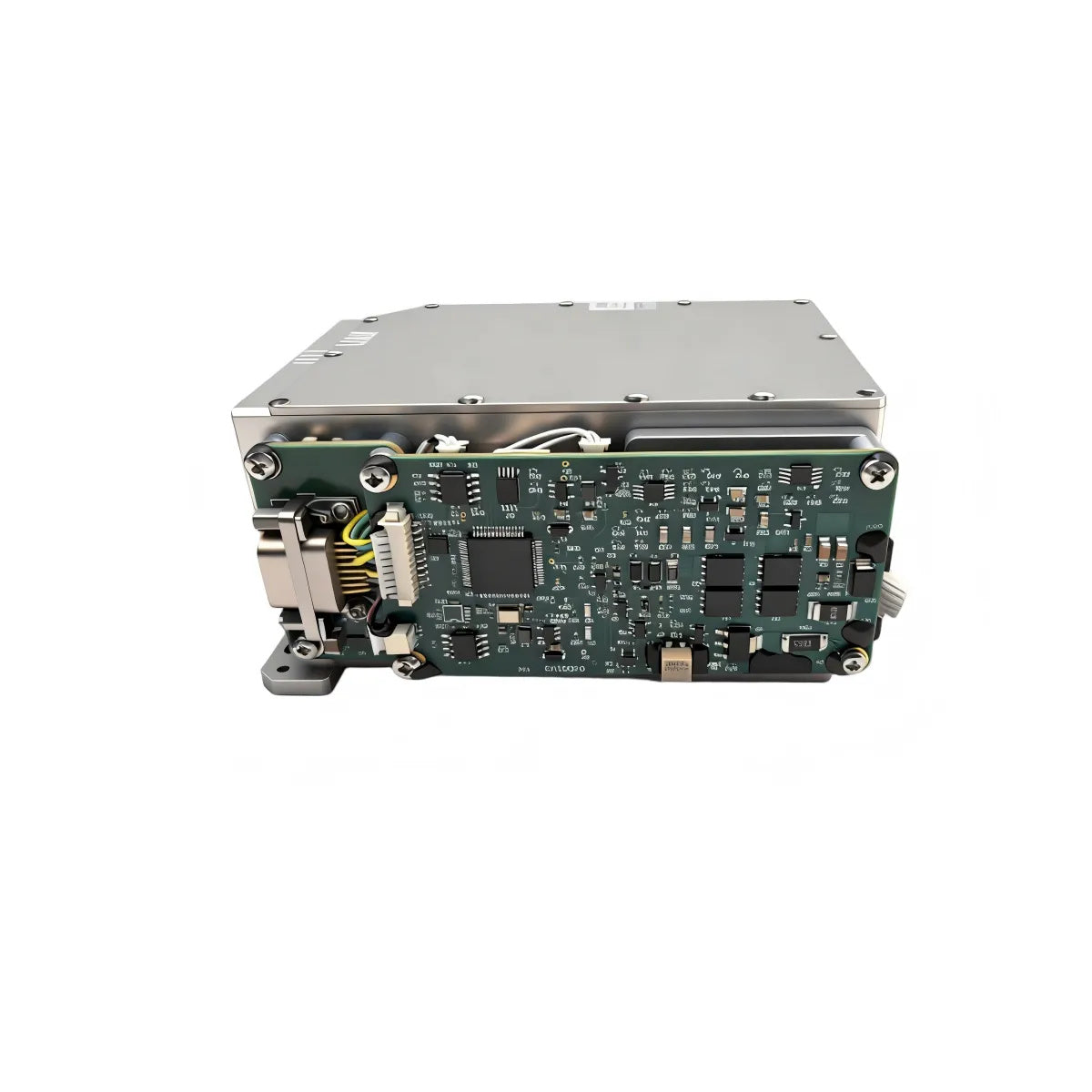

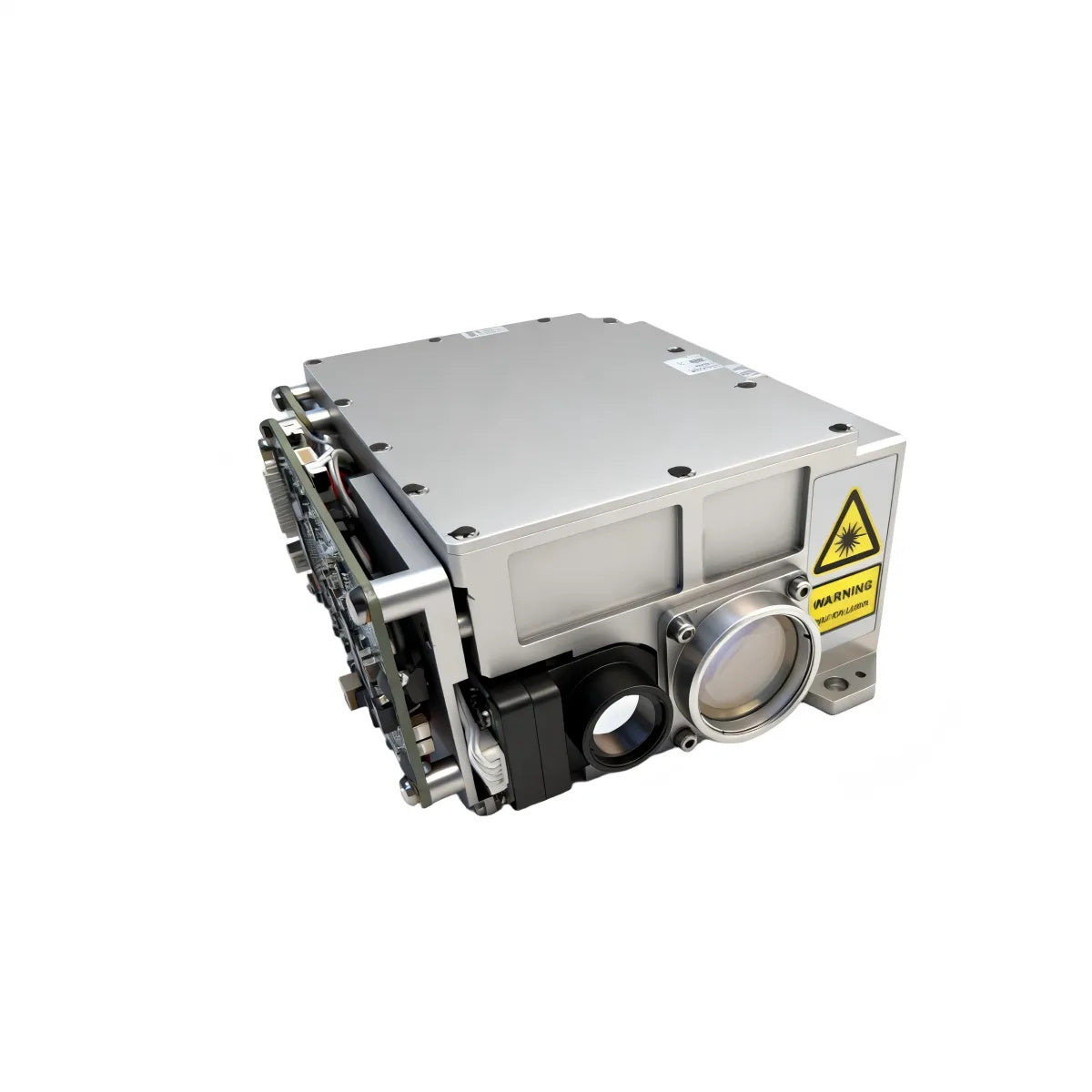

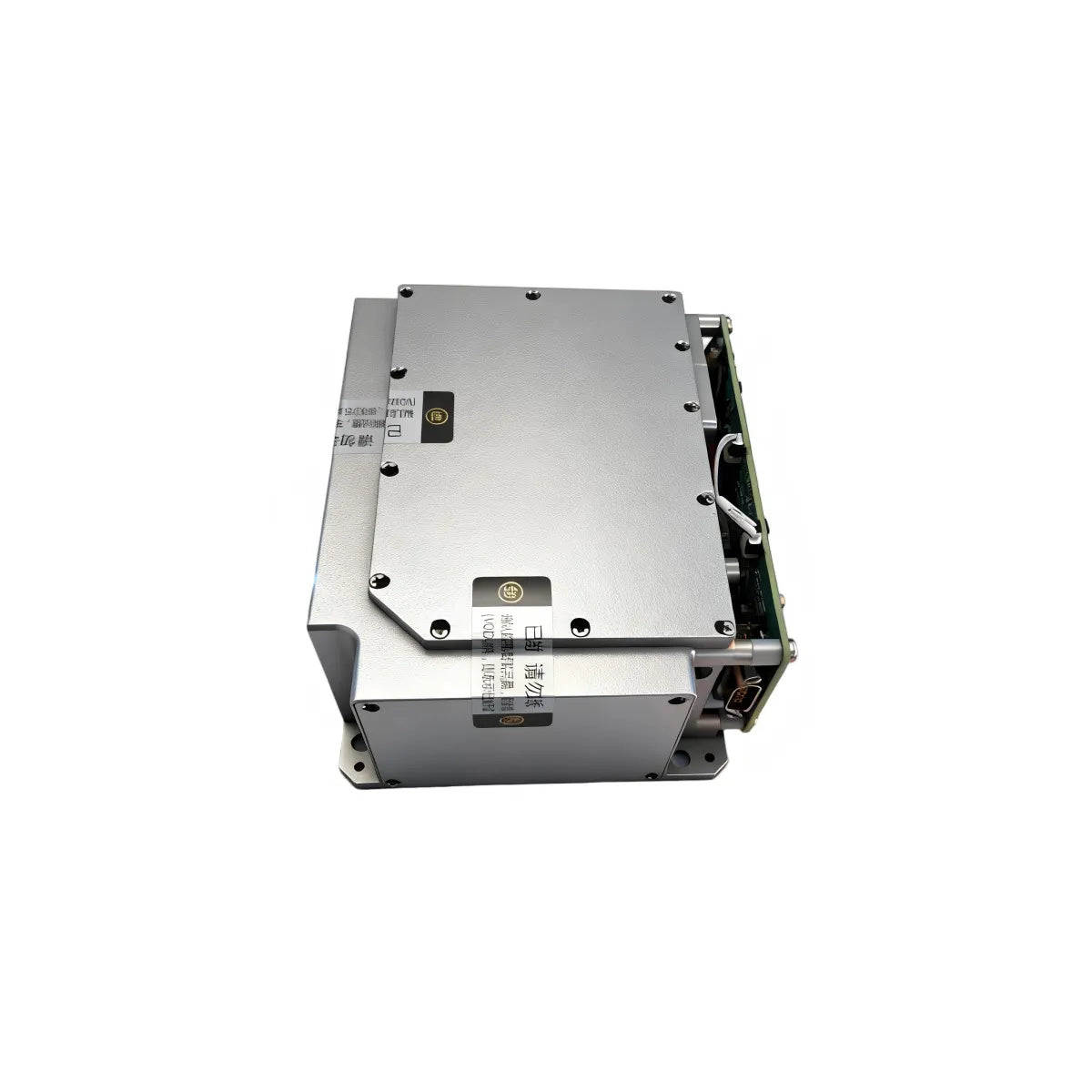

LDR80K1 10km Laser Rangefinder & Target Designator Module (80mJ)

LDR80K1 10km Laser Rangefinder & Target Designator Module (80mJ)

$46,000.00 USD
$46,000.00 USD
Sale Sold out
Taxes included.

LDR80K1 · 1064 nm laser ranging and designation system

LDR80K1 is listed in ERDI's 1064 nm ranging and designation family. Product-specific values, conditions and documents are shown only where they are bound to this model's controlled record.

Technical Downloads

Use the current controlled document revision for design review. Confirm the ordered connector and mechanical configuration before release.

Detailed LDR80K1 Specifications

The tables below retain the supplied model record. A value, option or condition from another model is not interchangeable.

Parameter Specification
Wavelength 1064 nm
Range (Ranging) ≥ 10,000 m
Weight ≤ 680 g
Dimensions 116 mm × 52 mm × 96 mm
Operating modes Ranging and laser designation
Pump source Laser diode array
Operating wavelength 1.064 μm
Average energy per designation cycle Average single-pulse energy per designation cycle ≥ 80 mJ
Pulse energy fluctuation Within one designation cycle, the single-pulse energy variation shall not exceed 10% of the average energy (over the full temperature range, with statistics taken 2 s after laser emission starts).
Beam divergence ≤ 0.30 mrad
Pulse width 15 ns ± 5 ns
Optical axis parallelism error Parallelism error between the optical axis and the mounting reference: ≤ 0.5 mrad.
Ranging performance Minimum measuring distance: ≤ 300 m Maximum measuring distance: ≥ 10 km(for a 2.3 m × 2.3 m target with diffuse reflectance ≥ 0.2, visibility ≥ 23 km, and relative humidity ≤ 70%) Ranging rates: 1 Hz, 5 Hz, single-shot Ranging accuracy: ≤ 5 m Probability of correct ranging: ≥ 98% Continuous ranging operating time: 5 min(At 5 Hz: continuous operation for 5 min, rest time ≤ 3 min, then ranging can be continued.)
Laser designation performance Nominal designation repetition rate (for verification): 20 pps Short designation mode: each cycle has 17 s of designation time and 30 s interval; up to 8 consecutive cycles Long designation mode: each cycle has 60 s of designation time and 45 s interval; up to 4 consecutive cycles After completing one long and one short designation cycle, the interval before the next designation shall be within 30 minutes.
Laser coding Meets the weapon system coding requirements and provides user-programmable code expansion capability. Supports external synchronization input; the external signal can control the laser emission pattern for coding. Coding method: precise frequency code (eight groups of pre-stored period-code patterns). Coding accuracy: ≤ 2.5 μs.
Dimensions ≤ 116 mm × 52 mm × 96 mm
Weight ≤ 680 g
Electrical characteristics Input voltage: DC 18 V to 32 V The electrical and electronic components inside the laser rangefinder/designator are compatible with the system power characteristics. Average power: ≤ 80 W; peak power: ≤ 120 W After PCB design and debugging are completed, all circuit boards are coated with conformal coating to provide moisture, salt-spray and fungus protection.
External power input requirements When sharing the same power supply with motor or other inductive loads, the laser rangefinder/designator should use a soft-start (3–5 s). At the instant of sudden power-on, the induced voltage generated by motors and other inductive loads at the module input may be several times the nominal input voltage, which can cause over-voltage damage. During power-up, it is recommended to use the dedicated power-on control function of the laser rangefinder/designator to stagger its power-on time from other loads. After other loads have powered up and stabilized, then enable power to the rangefinder/designator. The power input of the laser rangefinder/designator should be isolated from other inductive loads. If conditions allow, a DC filter (30 V / 10 A) can be added at the module’s power input. The power supply for the laser rangefinder/designator shall satisfy the peak power demand. When testing the module alone, with a DC supply voltage of 24 V, the supply current should be greater than 6 A. If the output voltage is lower, the rated output current of the supply should be increased accordingly.
Temperature Requirements High-Temperature Requirements Operating temperature: ≤ +55 °C Storage temperature: ≤ +65 °C Low-Temperature Requirements Operating temperature: ≥ −40 °C Storage temperature: ≥ −45 °C
Vibration Requirements The equipment shall withstand flight-induced vibration and shocks occurring during takeoff and landing. All components shall also meet the environmental conditions of vehicle transport. Vibration spectrum: From 15 Hz to 33 Hz , constant-displacement sinusoidal vibration with amplitude 0.91 mm ; From 33 Hz to 700 Hz , constant-acceleration sinusoidal vibration with amplitude 2 g . Duration: 1 hour per axis in three orthogonal directions (X, Y, Z). Test conditions: The product shall be mounted on the vibration platform in its normal operating configuration and powered on during testing. After vibration testing, the equipment shall operate normally.
Shock Requirements Vertical axis: ≥ 10 g Lateral axis: ≥ 10 g Longitudinal axis: ≥ 10 g Shock waveform: post-peak sawtooth, duration 11 ms ; applied along X, Y, and Z axes , both directions on each axis, 18 shocks in total . Test conditions: The product shall be mounted on the shock test platform in its normal operating configuration and powered on during testing. After shock testing, the equipment shall operate normally.

Interface and pin definitions

Pin No. Signal Definition Input/Output Description Remarks
1. +28V Input The power supply characteristics comply with the relevant requirements of MIL-STD-810G. Power Supply
2. +28V
3. +28V
4. +28V_GND
5. +28V_GND
6. +28V_GND
7. Power-On Control (+) Input/Output Refer to the requirements specified in the Power-On Control section. I/O Control
8. Power-On Control (-)
9. RS422_RX+ Input/Output The logic level and drive capability comply with the RS-422 interface standard. Characteristic impedance: 120 Ω. The transmit/receive pin definitions correspond to the laser rangefinder itself.
10. RS422_RX-
11. RS422_TX+
12. RS422_TX-
13. RS422_GND
14. External Synchronization Control Signal Input The logic level and drive capability comply with the RS-422 interface standard. External synchronization signal used to control laser coding.
15. External Synchronization Control Signal (–)

Application context

Application labels indicate evaluation context, not automatic fitness for a finished system.

The controlled LDR80K1 PDF describes distance measurement and coded laser designation for laser-guided artillery shells, mainly on airborne platforms requiring high reliability.

This context is bound only to the controlled LDR80K1 document; end-system suitability and acceptance remain subject to engineering review.

INTEGRATION CHECK

Model-specific conditions and limits

Conditions are retained only when the source states them. They are not reconstructed from a nominal range or wavelength.

FAQ

Is 1064 nm visible to the eye? It is infrared rather than ordinary visible light. Absence of a visible beam does not indicate absence of emission or hazard. Do not use visual appearance as an exposure assessment.

Does the wavelength determine the laser class? No. Product classification depends on accessible emission and the relevant assessment conditions. The wavelength is one input, not a classification certificate.

Does pulse energy describe electrical consumption? No. Pulse energy is optical energy per pulse. Supply consumption is an electrical quantity and belongs to its own operating condition in the model documentation.

Are accuracy and resolution interchangeable? No. A reporting increment is not a bound on measurement error. Read each field under its own definition and test conditions.

Can full-angle and half-angle divergence be compared directly? Not without identifying the convention. If the released record does not state it, request the measurement definition rather than silently choosing one.

Can the best figures from different operating modes be combined? No. A rate, duration or stability condition belongs to the mode to which it is assigned. Combining unrelated conditions creates a new, unsupported specification.

Does a cited standard prove certification? No. A citation identifies a framework or test method. Certification or completed qualification needs the relevant report and an explicit statement of the assessed product configuration.

What does a “typical” value mean here? It describes the source record’s representative value, not a newly guaranteed upper or lower limit. A typical entry must remain labeled typical.

Can storage temperature be used as the operating range? No. Non-operating storage and powered operation are different states. Preserve both entries and their qualifiers.

Does a reference paper establish this product’s internal material or design? No. General laser physics is not a bill of materials. Internal materials and construction require a controlled model source.

What should happen when a source unit or field is incomplete? Leave the uncertainty visible and obtain a corrected controlled document. Do not infer a missing unit, test condition or option from the product name.

Where are the sources for this page? The Technical Downloads area contains the model document. The bibliography separates product evidence from general standards and safety information; neither replaces a unit-specific test record.

ENGINEERING REFERENCES

Content aligned with the ERDI 1064 nm product documentation for LDR80K1. Request the controlled PDF and STEP model for design release.
