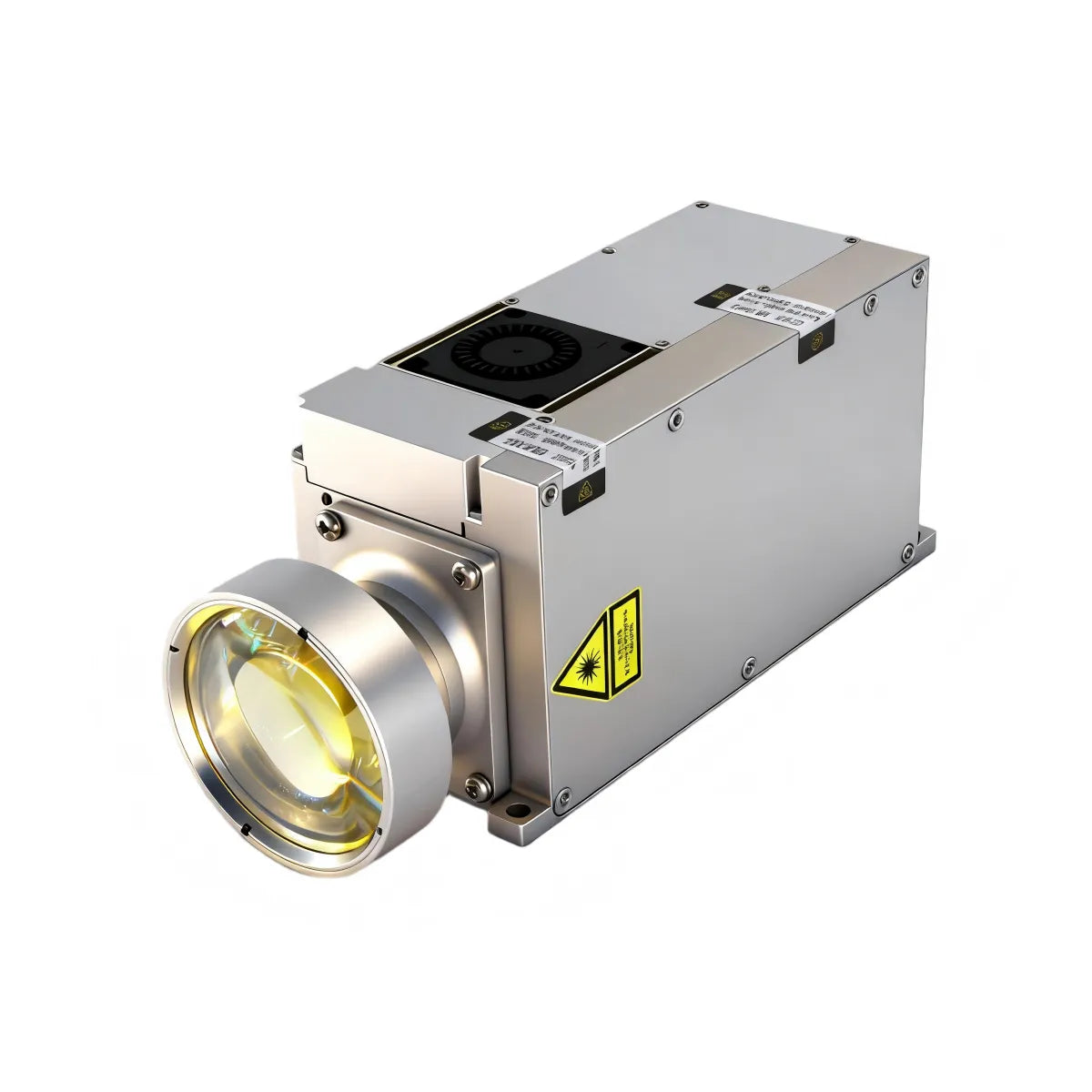

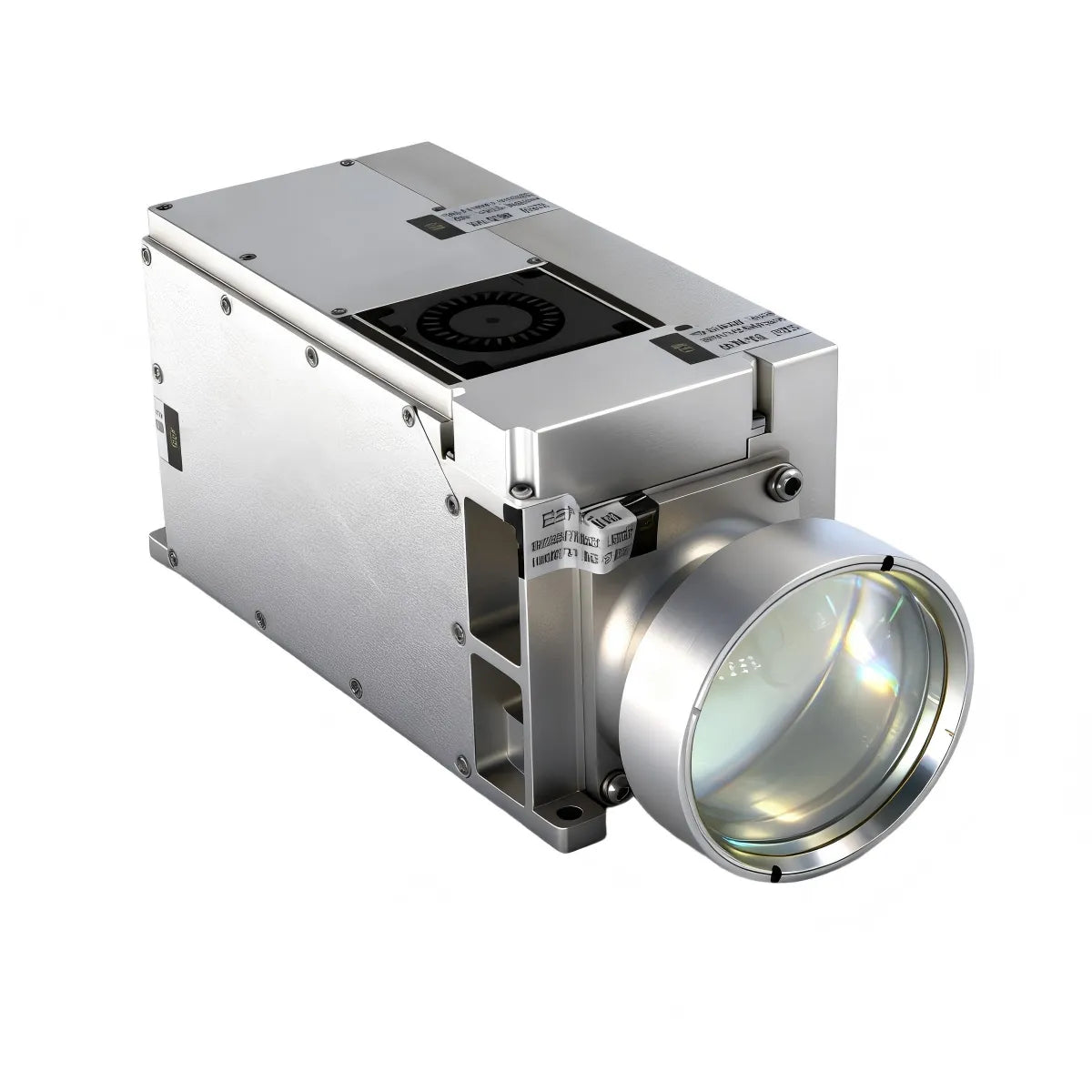

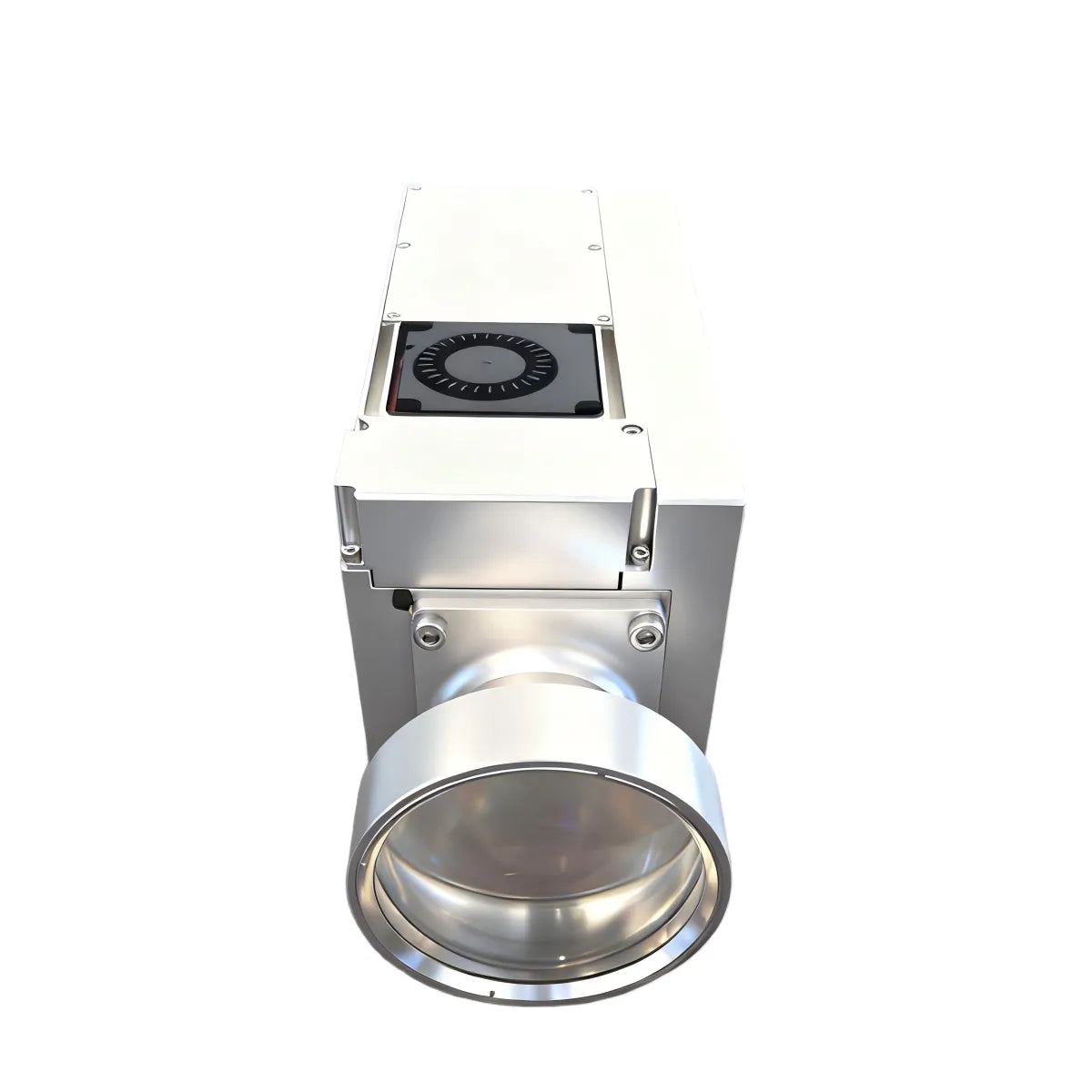

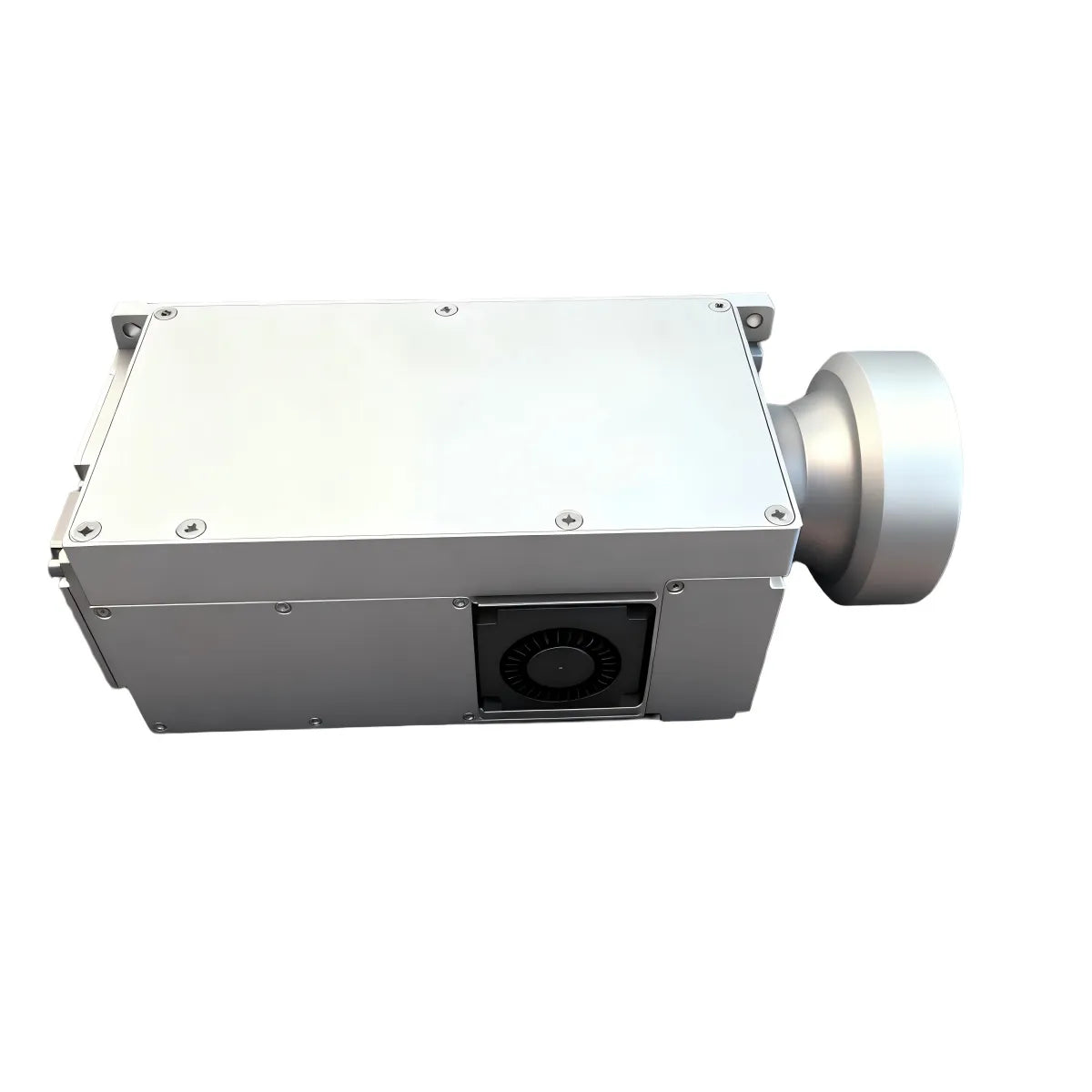

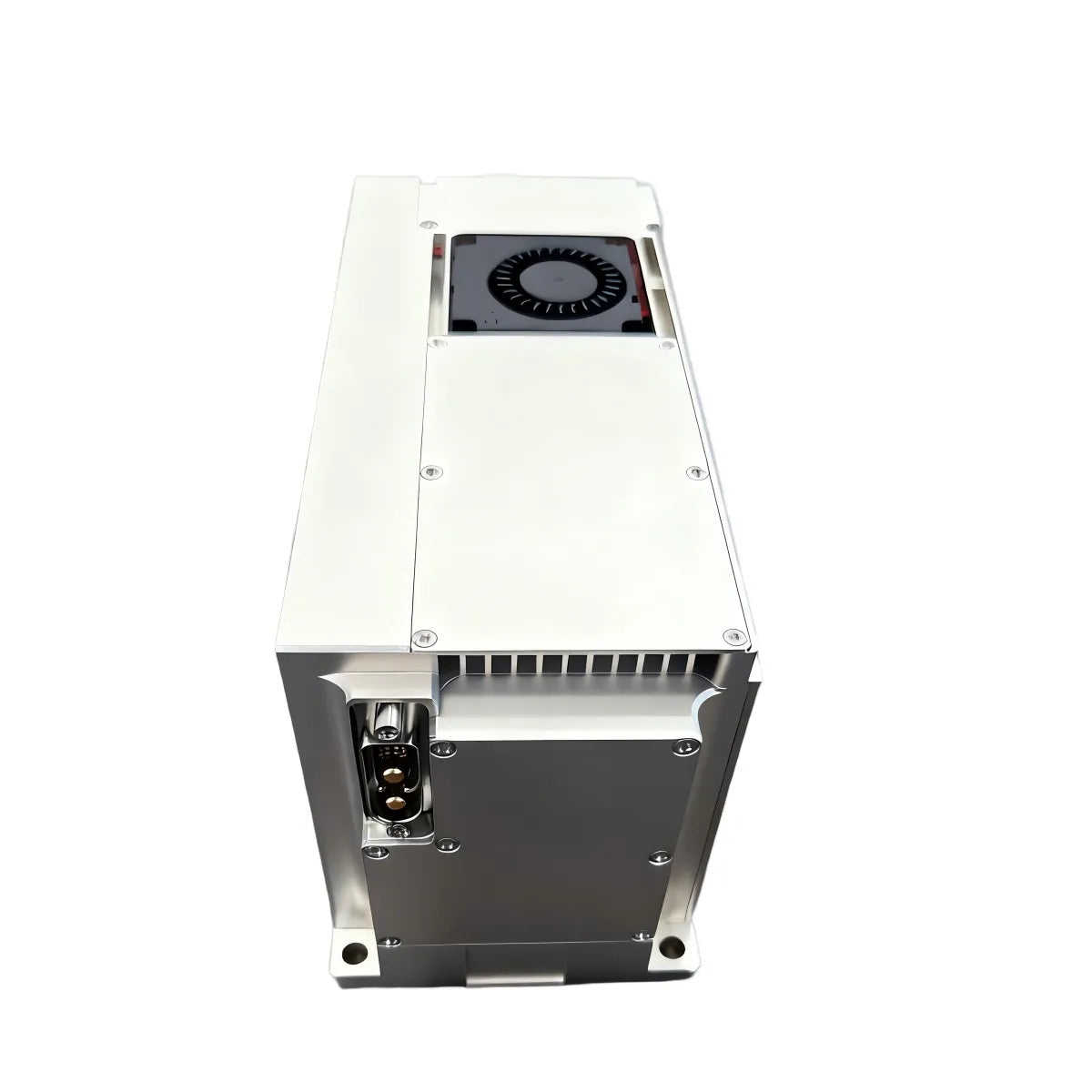

LR120K1 1064 nm Long-Range Laser Rangefinder & Target Designator for Artillery Fire Support and EO/IR Platforms

LR120K1 1064 nm Long-Range Laser Rangefinder & Target Designator for Artillery Fire Support and EO/IR Platforms

¥74,000.00 USD
¥74,000.00 USD
Sale Sold out
Taxes included.

The LR120K1 is a long-range 1064 nm laser rangefinder and target designator that delivers ≥120 mJ pulse energy, ≤0.15 mrad divergence, ≥30 km ranging, ±5 m accuracy and 20 Hz coded illumination. Powered from 18–32 V DC with ≤120 W average power, RS422 and CAN 2.0B interfaces, and a compact ≤75 × 90 × 220 mm, ≤2 kg housing tested to GJB150 vibration and shock standards, it is ideal for artillery fire support, laser-guided munitions and vehicle or shipborne EO/IR platforms.

TECHNICAL SPECIFICATIONS

Functional Characteristics

Provides laser ranging capability

Supports long-cycle laser designator, short-cycle laser designator, and emergency laser designator modes.

Includes built-in fixed frequency codes and supports online coding

Supports receiver detector lockout via command control; the receiver is locked by default at power-on.

Provides product temperature reporting.

Supports both internal trigger and external trigger operating modes.

Supports querying the laser emission count (cumulative count).

Provides energy adjustment capability for product maintenance.

Performance Parameters

Operating wavelength

1064 nm ± 3 nm

Energy (minimum)

≥ 120 mJ

Energy levels

50 mJ, 80 mJ, 120 mJ

Energy ranges per level

l 50–70 mJ

l 80–100 mJ

l ≥ 120 mJ

Energy stability

≤ ±10% per cycle (calculated after 2 s of laser designator)

Effective range (large target)

Laser ranging:

a) ≥ 30 km (conditions: visibility ≥ 45 km, target reflectivity 0.2, relative humidity ≤ 80%)
b) ≥ 20 km (conditions: visibility ≥ 30 km, target reflectivity 0.2, relative humidity ≤ 80%)
c) Minimum ranging distance: ≤ 300 m

Ranging accuracy

± 1 m

Repetition rate

Laser ranging: 1 Hz, 5 Hz

laser designator: 20 Hz

Valid measurement rate

≥ 98%

Pulse width

15 ns ± 5 ns

Beam divergence

≤ 0.15 mrad

Optical axis parallelism

Parallelism between mounting datum plane and optical axis ≤ 0.3 mrad

Operating modes

a) Laser ranging: continuous operation ≥ 10 min, rest 5 min
b) Short-duration laser designator:
Single laser designator duration ≥ 16 s, interval ≤ 9 s,
10 consecutive cycles; interval between major cycles ≤ 15 min
c) Long-durationlaser designator:
Single laser designator duration ≥ 60 s, interval ≤ 60 s,
5 consecutive cycles constitute one major cycle;
interval between major cycles ≤ 30 min
d) Emergency illumination (switching from ranging to laser designator):
Single laser designator duration ≥ 16 s, interval ≤ 9 s,
laser designator can be initiated at any time

Laser designator coding

a) 16 coding patterns
b) Coding accuracy: ± 1 μs
c) Coding range: 45,000 μs – 60,000 μs

Weight Requirements

Total unit weight

≤ 2 kg

Weight consistency

≤ 50 g

Structural Requirements

Overall dimensions

≤ 75 mm (W) × 90 mm (H) × 220 mm (L)

3D digital model requirements

The external model shall be complete and comprehensive, including details such as screws, cable routing, and mating connectors.

Load cable routing shall be included in the model design to avoid interference with the system.

Electrical Interface

DC input

18 V–32 V, typical supply 28 V

Average power consumption

≤ 120 W @ 28 V

Peak power consumption

≤ 200 W @ 28 V

Power-on inrush current

≤ 5 A @ 28 V

Digital ground, power ground, and mechanical housing shall be electrically isolated.

Environmental Adaptability Requirements

Operating Temperature

−40 °C to +60 °C

−40 °C to +60 °C

−45 °C to +65 °C
High-temperature storage: 2 h
Low-temperature storage: 2 h

Vibration

Equipment vibration testing shall be conducted in accordance with MIL-STD-810G, Laboratory Environmental Test Methods for Military Equipment.

Vibration conditions

8.2 Hz – 86.4 Hz: 0.1 g²/Hz

156.4 Hz – 172.8 Hz: 0.025 g²/Hz

234.6 Hz – 259.2 Hz: 0.006 g²/Hz

Other frequency points within 15 Hz – 2000 Hz: acceleration spectral density of 0.004 g²/Hz

Vibration shall be applied along the X, Y, and Z axes, 15 minutes per axis.

Shock

Vertical axis

≥ 20 g

Lateral and longitudinal axes

≥ 15 g

Pulse duration

11 ms

3 axes, 2 directions per axis, 18 shocks in total

Shock testing shall be conducted in accordance with MIL-STD-810G, Laboratory Environmental Test Methods for Military Equipment.

OUTLINE DIMENSION(mm)

LDR

PIN INTERFACE

A standard isolated RS-422 communication interface is provided.

Interface chip model: SMUM2682MP.

A standard isolated CAN 2.0B bus communication interface is provided, with a transmission rate greater than 1 Mbps.

CAN transceiver chip model: SMUM3053MP or ADM3053.

No bus termination resistor is included.

Firmware upgrade can be implemented via the CAN interface (CAN protocol to be defined).

Firmware upgrade can also be implemented via the serial interface.

Laser target designator connector: Receptacle J106-4H14ZKSP-02

Electro-optical platform mating plug: Plug J106-4H14TJSL-01

Connector manufacturer: Guihang

Table 1 — Connector Pin Assignment Description

Pin

Definition

Description

A1

+28 V Input Power



A2

+28 V Input Ground



4

Designator Serial TX+ (from designator to EO platform +)



11

Designator Serial RX− (from EO platform to designator −)



9

Designator Serial TX− (from designator to EO platform −)



2

Designator Serial RX+ (from EO platform to designator +)



8

Designator Serial Ground



14

External Sync RS-422 RX+

RS-422 level input

12

External Sync RS-422 RX−

13

External Sync RS-422 GND

5

CAN H

Isolated CAN 2.0B, 1 Mbps, no termination resistor installed

6

CAN L

7

CAN GND

B1

Laser Designation Sync Signal Output TX+

RS-422 level output, active low, pulse width 10 μs

B2

Laser Designation Sync Signal Output TX−

3

Laser Designation Sync Signal Output GND
