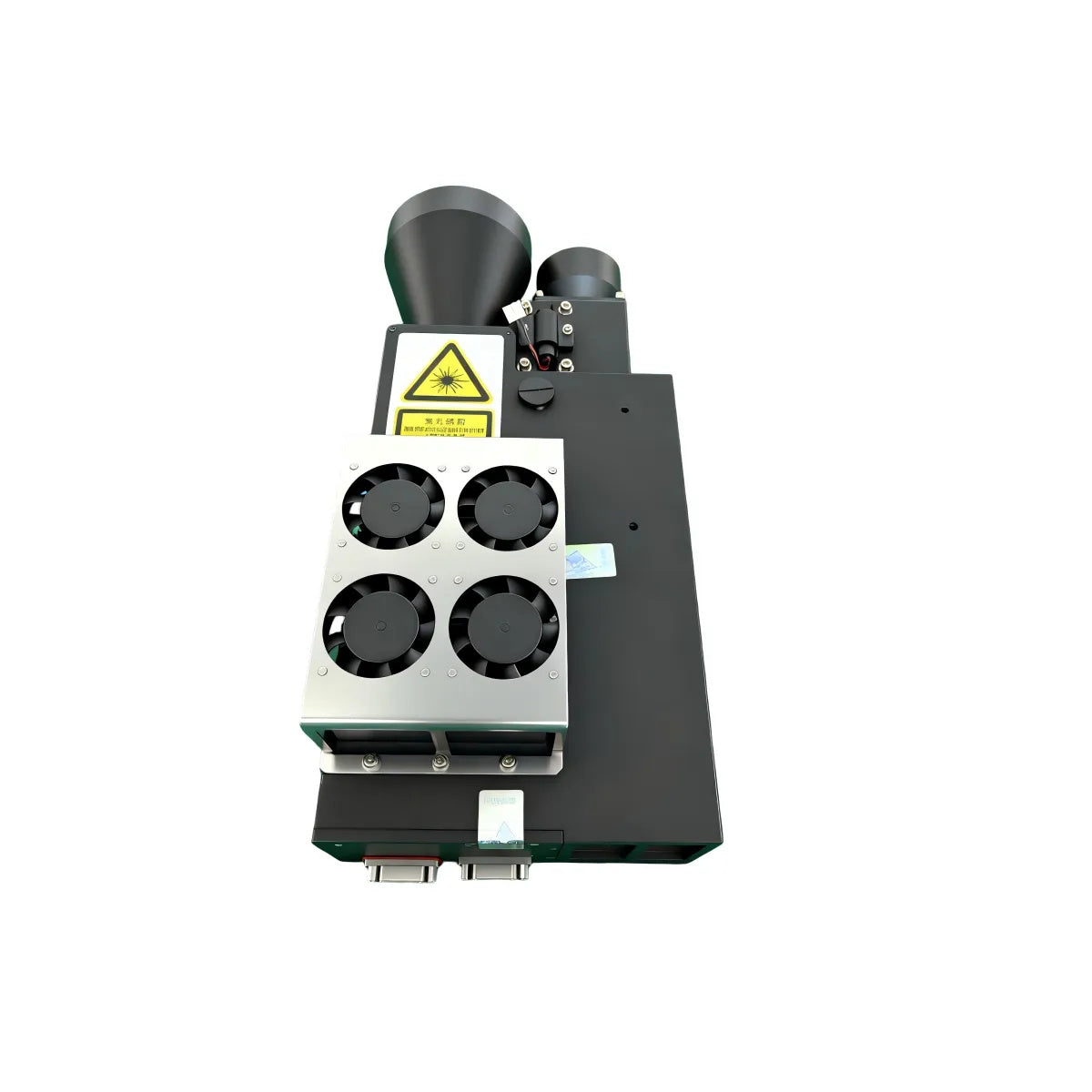

LR160 30km High-Precision Laser Ranging Module
LR160 30km High-Precision Laser Ranging Module
Couldn't load pickup availability
LR160 · 1064 nm laser ranging and designation system
LR160 is listed in ERDI's 1064 nm ranging and designation family. Product-specific values, conditions and documents are shown only where they are bound to this model's controlled record.
Technical Downloads
Use the current controlled document revision for design review. Confirm the ordered connector and mechanical configuration before release.
- PDF Datasheet — LR160 — verified product specification (.pdf)
- 1064 nm Systems Catalog (EN) — full family catalogue (.pdf)
- 3D model — the controlled STEP source is released on request. Contact us with your integration requirement.
Detailed LR160 Specifications
The tables below retain the supplied model record. A value, option or condition from another model is not interchangeable.
| Laser Wavelength | 1064nm±1nm |
| Laser Energy | 85 mJ and 160 mJ (switchable) |
| Optical Delay | Withheld pending a corrected, controlled model specification. See the source-review note above. |
| Beam Divergence | ≤0.2mrad |
| Laser Designation Frequency | 8～21Hz |
| Ranging Frequency | 10Hz |
| Laser Pulse Width | Withheld pending a corrected, controlled model specification. See the source-review note above. |
| Power Stability | ≤8% |
| Ranging Range | Withheld pending a corrected, controlled model specification. See the source-review note above. |
| Ranging Error | ≤5m |
| Target Selection | First Target / Second Target / Last Target |
| Valid Measurement Rate | 98% |
| Trigger Mode | Internal Sync Illumination, External Sync Illumination (Trigger Delay: 304.0 μs ± 0.1 μs ) |
| Dimensions | ≤306×145×94mm |
| Weight | ≤3.3kg |
| Laser Designation Performance | Laser Designation Center Frequency: 20 Hz Low/Normal Temperature, 85 mJ Output Laser designation time: 90 s , rest: 60 s , 5 consecutive cycles Low/Normal Temperature, 160 mJ Output Laser designation time: 60 s , rest: 60 s , 5 consecutive cycles High Temperature, 85 mJ Output Laser designation time: 90 s , rest: 60 s , 1 cycle High Temperature, 160 mJ Output Laser designation time: 60 s , rest: 60 s , 1 cycle |
| Ranging Performance | Minimum Measuring Distance: ≤ 300 m Maximum Measuring Distance: ≥ 30 km (target size 10 m × 10 m × 8 m, diffuse reflectivity ≥ 0.2, visibility ≥ 30 km, relative humidity ≤ 70%) Ranging Frequency: 10 Hz (up to 3 targets) Continuous Operating Cycles: l Low/Normal Temperature: Operate 5 minutes , rest 4 minutes , 5 consecutive cycles l High Temperature, 85 mJ Output: Operate 5 minutes , rest 4 minutes , 2 consecutive cycles l High Temperature, 160 mJ Output: Operate 2 minutes , rest 4 minutes , 2 consecutive cycles |
| RS422 | |
| External Synchronization Interface | Withheld pending a corrected, controlled model specification. See the source-review note above. |
| Coding Mode | Precise frequency coding and time coding |
| Period Accuracy | <±1us |
| Power Supply | DC 24V±4V |
| Startup Time | < 1 minute (at room temperature) |
| Low Temperature | Operating temperature: −40 °C Storage temperature: −45 °C |
| High Temperature | Operating temperature: +60 °C Storage temperature: +65 °C |
Interface and pin definitions
| J30J-21ZKP | |||||
| Pin | Function | Description | Direction | Remarks | |
|---|---|---|---|---|---|
| 1 | TX+ | RS-422 TX+ | Output | RS-422 Communication Interface | |
| 2 | TX- | RS-422 TX− | Output | ||
| 3 | RX+ | RS-422 RX+ | Input | ||
| 4 | RX- | RS-422 RX− | Input | ||
| 5 | GND | RS-422 GND | GND | ||
| 6 | EN+ | Power Enable | 24 V Power Enable Switch | ||
| 7 | EN- | Power Enable | |||
| 8-13 | Not Connected / NC | ||||
| 14 | A | External Sync Differential + (A) | Input | A and B are the A/B differential outputs of the RS-422 driver chip | |
| 15 | B | External Sync Differential − (B) | Input | ||
| 16 | LED+ | DC5V | Input | Laser Designation Power Supply | |
| 17 | LED- | GND | Input | ||
| 18-21 | |||||
Interface and pin definitions
| J30J-04ZK | |||||
| Pin | Function | Description | Direction | Remarks | |
|---|---|---|---|---|---|
| A、B | 24V | Power Supply | Input | Red | |
| C、D | GND | Power GND | Input | Black | |
Application context
Application labels indicate evaluation context, not automatic fitness for a finished system.
The controlled LR160 PDF identifies UAV gimbals, aircraft pods, vehicle turrets, and coastal or border defense systems as application contexts.
This context is bound only to the controlled LR160 document; end-system suitability and acceptance remain subject to engineering review.
INTEGRATION CHECK
Model-specific conditions and limits
Conditions are retained only when the source states them. They are not reconstructed from a nominal range or wavelength.
FAQ
Is 1064 nm visible to the eye? It is infrared rather than ordinary visible light. Absence of a visible beam does not indicate absence of emission or hazard. Do not use visual appearance as an exposure assessment.
Does the wavelength determine the laser class? No. Product classification depends on accessible emission and the relevant assessment conditions. The wavelength is one input, not a classification certificate.
Does pulse energy describe electrical consumption? No. Pulse energy is optical energy per pulse. Supply consumption is an electrical quantity and belongs to its own operating condition in the model documentation.
Are accuracy and resolution interchangeable? No. A reporting increment is not a bound on measurement error. Read each field under its own definition and test conditions.
Can full-angle and half-angle divergence be compared directly? Not without identifying the convention. If the released record does not state it, request the measurement definition rather than silently choosing one.
Can the best figures from different operating modes be combined? No. A rate, duration or stability condition belongs to the mode to which it is assigned. Combining unrelated conditions creates a new, unsupported specification.
Does a cited standard prove certification? No. A citation identifies a framework or test method. Certification or completed qualification needs the relevant report and an explicit statement of the assessed product configuration.
What does a “typical” value mean here? It describes the source record’s representative value, not a newly guaranteed upper or lower limit. A typical entry must remain labeled typical.
Can storage temperature be used as the operating range? No. Non-operating storage and powered operation are different states. Preserve both entries and their qualifiers.
Does a reference paper establish this product’s internal material or design? No. General laser physics is not a bill of materials. Internal materials and construction require a controlled model source.
What should happen when a source unit or field is incomplete? Leave the uncertainty visible and obtain a corrected controlled document. Do not infer a missing unit, test condition or option from the product name.
Where are the sources for this page? The Technical Downloads area contains the model document. The bibliography separates product evidence from general standards and safety information; neither replaces a unit-specific test record.
ENGINEERING REFERENCES
Content aligned with the ERDI 1064 nm product documentation for LR160. Request the controlled PDF and STEP model for design release.
